Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

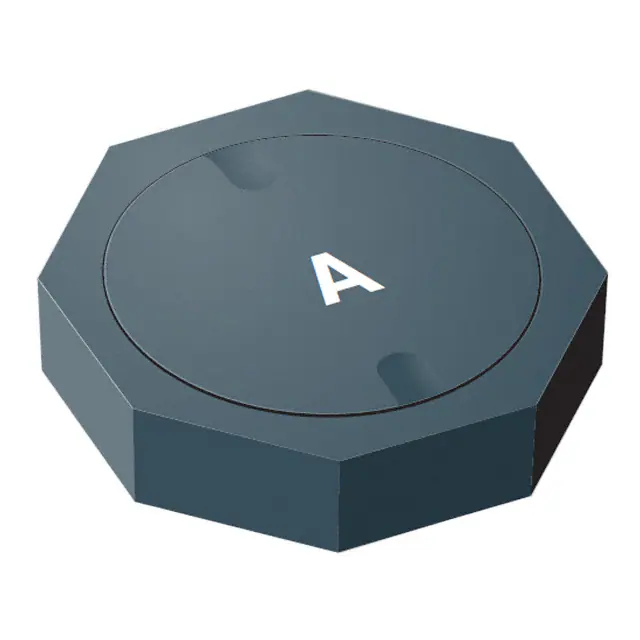

SRU2011-4R7YFIXED IND 4.7UH 730MA 365MOHM SM Bourns Inc. |
1,500 |
|
Datasheet |
SRU2011 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 730 mA | 580mA | Shielded | 365mOhm Max | 6 @ 7.96MHz | 70MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.110" L x 0.110" W (2.80mm x 2.80mm) | 0.047" (1.20mm) |
|
SDR1005-682KLFIXED IND 6.8MH 110MA 30 OHM SMD Bourns Inc. |
1,492 |
|
Datasheet |
SDR1005 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 mH | ±10% | 110 mA | 120mA | Unshielded | 30Ohm Max | 105 @ 171kHz | 1MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.197" (5.00mm) |
|
SRU5028-1R2YFIXED IND 1.2UH 3.5A 16.8MOHM SM Bourns Inc. |
1,408 |
|
Datasheet |
SRU5028 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±30% | 3.5 A | 3.4A | Shielded | 16.8mOhm | 10 @ 7.96MHz | 200MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.118" (3.00mm) |
|
SDR1006-331KLFIXED IND 330UH 520MA 1.15OHM SM Bourns Inc. |
140,871 |
|
Datasheet |
SDR1006 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 520 mA | 850mA | Unshielded | 1.15Ohm Max | 12 @ 796kHz | 3.2MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
|
SDR1006-220MLFIXED IND 22UH 1.95A 100MOHM SMD Bourns Inc. |
9,277 |
|
Datasheet |
SDR1006 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.95 A | 3.5A | Unshielded | 100mOhm Max | 25 @ 2.52MHz | 13MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
|
SDR1006-561KLFIXED IND 560UH 330MA 1.9OHM SMD Bourns Inc. |
8,866 |
|
Datasheet |
SDR1006 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±10% | 330 mA | 660mA | Unshielded | 1.9Ohm Max | 12 @ 796kHz | 2.3MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
SRU2016-100YFIXED IND 10UH 870MA 430MOHM SMD Bourns Inc. |
6,072 |
|
Datasheet |
SRU2016 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 870 mA | 520mA | Shielded | 430mOhm Max | 9 @ 2.52MHz | 45MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.110" L x 0.110" W (2.80mm x 2.80mm) | 0.071" (1.80mm) |
|
|
SDR1006-271KLFIXED IND 270UH 570MA 970MOHM SM Bourns Inc. |
4,869 |
|
Datasheet |
SDR1006 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 270 µH | ±10% | 570 mA | 1A | Unshielded | 970mOhm Max | 12 @ 796kHz | 3.5MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
|
SDR1006-680KLFIXED IND 68UH 1.1A 220 MOHM SMD Bourns Inc. |
3,777 |
|
Datasheet |
SDR1006 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 1.1 A | 2A | Unshielded | 220mOhm Max | 15 @ 2.52MHz | 7MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
|
SDR1006-4R7MLFIXED IND 4.7UH 4A 36 MOHM SMD Bourns Inc. |
3,144 |
|
Datasheet |
SDR1006 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 4 A | 7.3A | Unshielded | 36mOhm Max | 33 @ 7.96MHz | 40MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
