Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDR1006-820KLFIXED IND 82UH 1A 250 MOHM SMD Bourns Inc. |
2,493 |
|
Datasheet |
SDR1006 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±10% | 1 A | 1.9A | Unshielded | 250mOhm Max | 15 @ 2.52MHz | 6MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
SRU3028-150YFIXED IND 15UH 660MA 230MOHM SMD Bourns Inc. |
2,278 |
|
Datasheet |
SRU3028 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±30% | 660 mA | 720mA | Shielded | 230mOhm | 18 @ 2.52MHz | 25MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.130" W (3.50mm x 3.30mm) | 0.118" (3.00mm) |
|
SRU2016-4R7YFIXED IND 4.7UH 1.15A 215MOHM SM Bourns Inc. |
1,506 |
|
Datasheet |
SRU2016 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 1.15 A | 740mA | Shielded | 215mOhm Max | 8 @ 7.96MHz | 80MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.110" L x 0.110" W (2.80mm x 2.80mm) | 0.071" (1.80mm) |
|

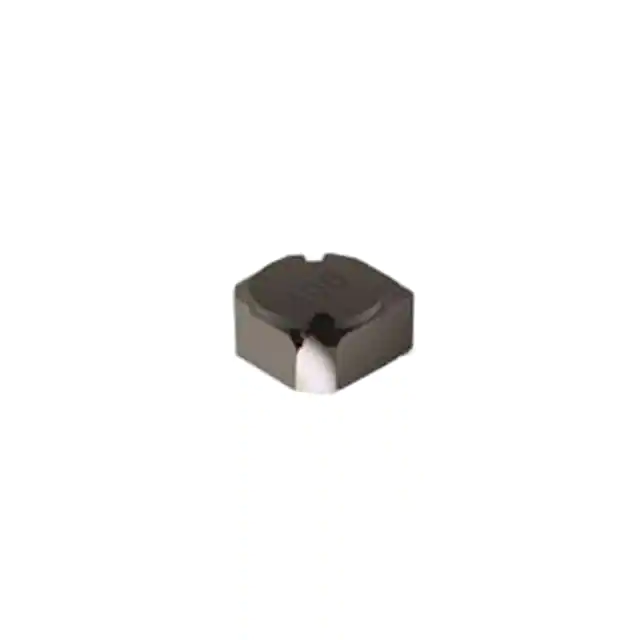

SRR4528A-2R2YFIXED IND 2.2UH 3.78A 23MOHM SMD Bourns Inc. |
3,460 |
|
Datasheet |
SRR4528A | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±30% | 3.78 A | 2.32A | Shielded | 23mOhm Max | - | 76MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.110" (2.80mm) |
|
SRR3818A-470MFIXED IND 47UH 560MA 1.03OHM SMD Bourns Inc. |
2,574 |
|
Datasheet |
SRR3818A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 560 mA | 300mA | Shielded | 1.03Ohm Max | - | 15MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.079" (2.00mm) |
|
SDR7045-330MFIXED IND 33UH 1.22A 150MOHM SMD Bourns Inc. |
2,389 |
|
Datasheet |
SDR7045 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.22 A | 1.32A | Unshielded | 150mOhm Max | 20 @ 2.52MHz | 18MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
SRR4818A-4R7YFIXED IND 4.7UH 2.6A 80 MOHM SMD Bourns Inc. |
2,121 |
|
Datasheet |
SRR4818A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 2.6 A | 1.5A | Shielded | 80mOhm Max | - | 55MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.079" (2.00mm) |
|
SRR4828A-680MFIXED IND 68UH 900MA 370MOHM SMD Bourns Inc. |
1,743 |
|
Datasheet |
SRR4828A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 900 mA | 380mA | Shielded | 370mOhm Max | - | 11MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
SRR4818A-6R8YFIXED IND 6.8UH 2.2A 100MOHM SMD Bourns Inc. |
1,146 |
|
Datasheet |
SRR4818A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 2.2 A | 1.25A | Shielded | 100mOhm Max | - | 45MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.079" (2.00mm) |
|
|
SRR4818A-2R2YFIXED IND 2.2UH 3.5A 45 MOHM SMD Bourns Inc. |
1,131 |
|
Datasheet |
SRR4818A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 3.5 A | 2.43A | Shielded | 45mOhm Max | - | 90MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.079" (2.00mm) |
