Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRU6025-151YFIXED IND 150UH 540MA 770MOHM SM Bourns Inc. |
1,475 |
|
Datasheet |
SRU6025 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±30% | 540 mA | 280mA | Shielded | 770mOhm Max | 30 @ 2.52MHz | 5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.244" W (6.50mm x 6.20mm) | 0.110" (2.80mm) |
|
SDE1006A-101KFIXED IND 100UH 1.3A 350MOHM SMD Bourns Inc. |
3,457 |
|
Datasheet |
SDE1006A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 1.3 A | 1.4A | Unshielded | 350mOhm Max | - | 7.3MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.228" (5.80mm) |
|
|
SDE1006A-330MFIXED IND 33UH 2.2A 120 MOHM SMD Bourns Inc. |
2,543 |
|
Datasheet |
SDE1006A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 2.2 A | 2.4A | Unshielded | 120mOhm Max | - | 12.1MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.228" (5.80mm) |
|

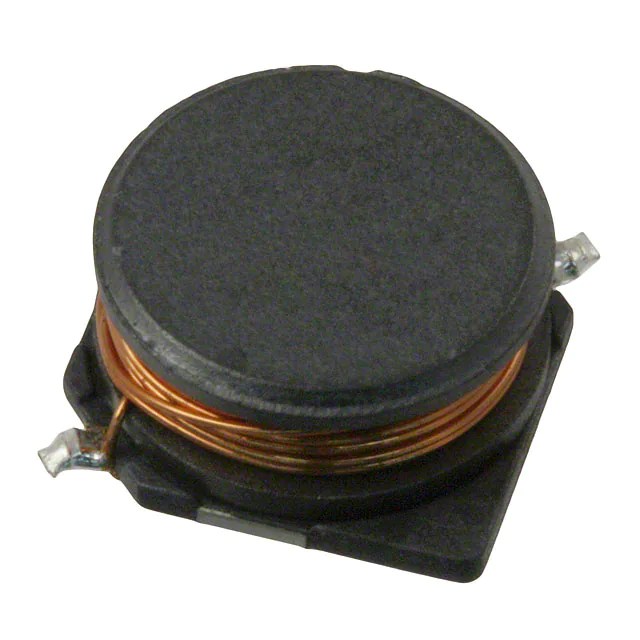

SDR1045-101KFIXED IND 100UH 1.1A 540MOHM SMD Bourns Inc. |
2,415 |
|
Datasheet |
SDR1045 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 1.1 A | 1.3A | Unshielded | 540mOhm Max | 14 @ 796kHz | 9.7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.189" (4.80mm) |
|

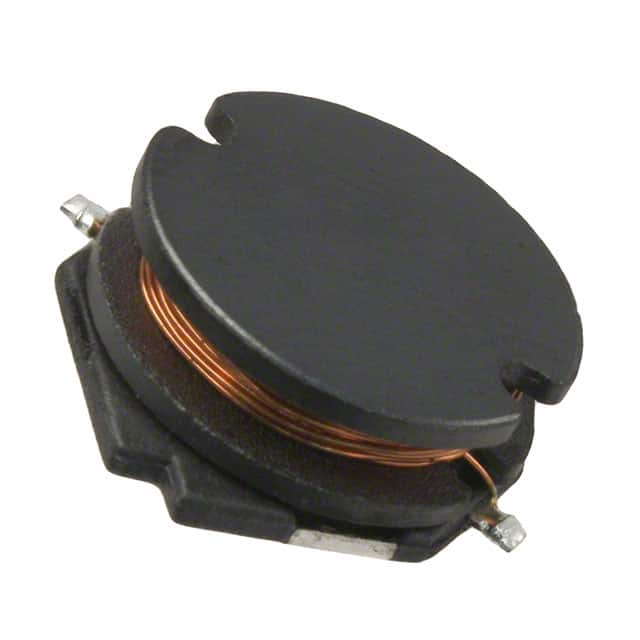

SDR1305-330MFIXED IND 33UH 2.5A 85 MOHM SMD Bourns Inc. |
1,795 |
|
Datasheet |
SDR1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 2.5 A | 2.6A | Unshielded | 85mOhm Max | 23 @ 2.52MHz | 16MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.201" (5.10mm) |
|
SRU8028-4R7YFIXED IND 4.7UH 3.7A 20 MOHM SMD Bourns Inc. |
36,426 |
|
Datasheet |
SRU8028 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 3.7 A | 3.2A | Shielded | 20mOhm | 15 @ 7.96MHz | 50MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.122" (3.10mm) |
|
SRR0745A-680MFIXED IND 68UH 860MA 300MOHM SMD Bourns Inc. |
14,724 |
|
Datasheet |
SRR0745A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 68 µH | ±20% | 860 mA | 960mA | Shielded | 300mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.185" (4.70mm) |
|
|
SRU8028-3R3YFIXED IND 3.3UH 3.6A 17.5MOHM SM Bourns Inc. |
8,358 |
|
Datasheet |
SRU8028 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 3.6 A | 3.5A | Shielded | 17.5mOhm | 12 @ 7.96MHz | 60MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.122" (3.10mm) |
|
|
SRR0745A-150MFIXED IND 15UH 1.9A 75 MOHM SMD Bourns Inc. |
6,022 |
|
Datasheet |
SRR0745A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±20% | 1.9 A | 2.1A | Shielded | 75mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.185" (4.70mm) |
|
|
SRR0745A-390MFIXED IND 39UH 1.17A 190MOHM SMD Bourns Inc. |
5,507 |
|
Datasheet |
SRR0745A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 39 µH | ±20% | 1.17 A | 1.3A | Shielded | 190mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.185" (4.70mm) |
