Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CM322522-221KLFIXED IND 220UH 45MA 21 OHM SMD Bourns Inc. |
4,931 |
|
Datasheet |
CM322522 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 45 mA | - | - | Unshielded | 21Ohm Max | 220 µH | 20 @ 796kHz | 7MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -40°C ~ 125°C | 796 kHz | 0.087" (2.20mm) |
|
|
CM322522-2R2KFIXED IND 2.2UH 190MA 950MOHM SM Bourns Inc. |
4,122 |
|
Datasheet |
CM322522 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 190 mA | - | - | Unshielded | 950mOhm Max | 2.2 µH | 30 @ 7.96MHz | 80MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -40°C ~ 125°C | 7.96 MHz | 0.087" (2.20mm) |
|
CW252016-100JFIXED IND 10UH 200MA 4.2 OHM SMD Bourns Inc. |
3,815 |
|
Datasheet |
CW252016 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 200 mA | - | 1008 (2520 Metric) | Unshielded | 4.2Ohm | 10 µH | 18 @ 7.9MHz | 40MHz | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -40°C ~ 125°C | 2.5 MHz | 0.071" (1.80mm) |
|
|
CW252016-5R6JFIXED IND 5.6UH 180MA 4.9OHM SMD Bourns Inc. |
4,708 |
|
Datasheet |
CW252016 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 180 mA | - | 1008 (2520 Metric) | Unshielded | 4.9Ohm | 5.6 µH | 18 @ 7.9MHz | 40MHz | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -40°C ~ 125°C | 7.9 MHz | 0.071" (1.80mm) |
|
|
CW252016-8R2JFIXED IND 8.2UH 100MA 8 OHM SMD Bourns Inc. |
4,096 |
|
Datasheet |
CW252016 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 100 mA | - | 1008 (2520 Metric) | Unshielded | 8Ohm | 8.2 µH | 18 @ 7.9MHz | 25MHz | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -40°C ~ 125°C | 7.9 MHz | 0.071" (1.80mm) |
|

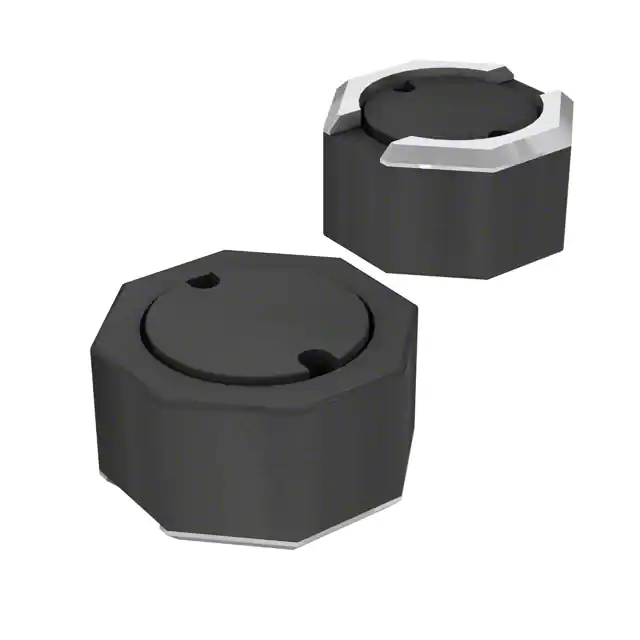

SRU2016-101YFIXED IND 100UH 190MA 4.9OHM SMD Bourns Inc. |
4,358 |
|
Datasheet |
SRU2016 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±30% | 190 mA | 150mA | - | Shielded | 4.9Ohm Max | 100 µH | 8 @ 2.52MHz | 10MHz | Surface Mount | - | 0.110" L x 0.110" W (2.80mm x 2.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.071" (1.80mm) |
|

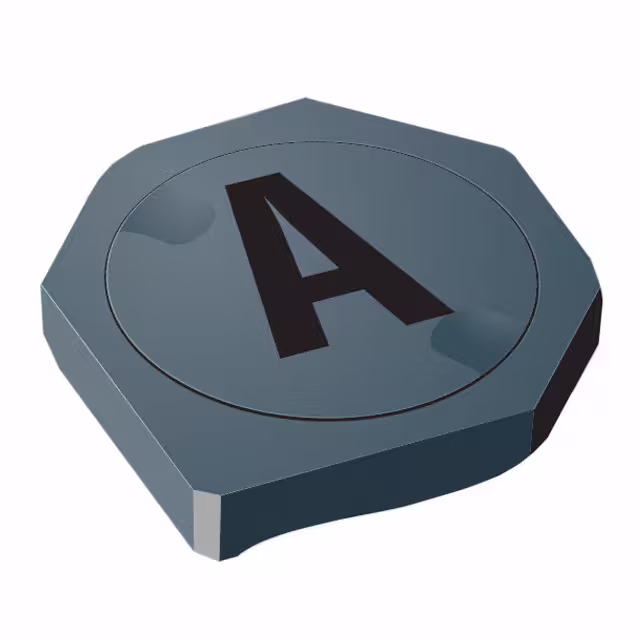

SRU3009-100YFIXED IND 10UH 280MA 760MOHM SMD Bourns Inc. |
4,500 |
|
Datasheet |
SRU3009 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±30% | 280 mA | 350mA | - | Shielded | 760mOhm Max | 10 µH | 8.5 @ 2.52MHz | 60MHz | Surface Mount | - | 0.138" L x 0.130" W (3.50mm x 3.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.041" (1.05mm) |
|
|
SRU3009-1R3YFIXED IND 1.3UH 1A 115 MOHM SMD Bourns Inc. |
4,425 |
|
Datasheet |
SRU3009 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±30% | 1 A | 1.1A | - | Shielded | 115mOhm Max | 1.3 µH | 10 @ 7.96MHz | 210MHz | Surface Mount | - | 0.138" L x 0.130" W (3.50mm x 3.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.041" (1.05mm) |
|
|
SRU3009-220YFIXED IND 22UH 220MA 1.45OHM SMD Bourns Inc. |
3,624 |
|
Datasheet |
SRU3009 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±30% | 220 mA | 250mA | - | Shielded | 1.45Ohm Max | 22 µH | 20 @ 2.52MHz | 40MHz | Surface Mount | - | 0.138" L x 0.130" W (3.50mm x 3.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.041" (1.05mm) |
|
|
SRU3009-2R2YFIXED IND 2.2UH 800MA 145MOHM SM Bourns Inc. |
2,846 |
|
Datasheet |
SRU3009 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±30% | 800 mA | 850mA | - | Shielded | 145mOhm Max | 2.2 µH | 8.5 @ 7.96MHz | 150MHz | Surface Mount | - | 0.138" L x 0.130" W (3.50mm x 3.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.041" (1.05mm) |
