Logic Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Inputs - Side 1/Side 2 | Voltage - Isolation | Common Mode Transient Immunity (Min) | Input Type | Output Type | Current - Output / Channel | Data Rate | Propagation Delay tpLH / tpHL (Max) | Rise / Fall Time (Typ) | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ACPL-W60L-500EOPTOISO 5KV OPN COLL 6SO |
5,805 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 15MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | 20mA | 2.7V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 6-SO |
|
PS9122-V-AXSO-5 |
2,050 |
|
Datasheet |
- | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Strip | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector | 20 mA | 1Mbps | 700ns, 500ns | 60ns, 70ns | 1.6V | 25mA | 7V | - | - | -40°C ~ 100°C | Surface Mount | 5-SO |
|
|
PS9124-AXSO-5 |
930 |
|
Datasheet |
- | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Strip | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 5ns | 1.55V | 25mA | 2.7V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 110°C | Surface Mount | 5-SO |
|
|
PS9513L2-V-AXHI-SPD OPTOCPLR 8-PIN DIP |
750 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector | 15 mA | 1Mbps | 750ns, 500ns | - | 1.65V | 25mA | 4.5V ~ 20V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD |
|
PS9513-AXOPTOISO 5KV OPEN COLLECTOR 8DIP |
720 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector | 15 mA | 1Mbps | 750ns, 500ns | - | 1.65V | 25mA | 4.5V ~ 20V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP |
|
PS9513L2-AXOPTOISO 5KV OPEN COLL 8DIP GW |
270 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector | 15 mA | 1Mbps | 750ns, 500ns | - | 1.65V | 25mA | 4.5V ~ 20V | - | - | -40°C ~ 100°C | Surface Mount | 8-DIP Gull Wing |
|
|
ACPL-W483-500EOPTOISO 5KV PUSH PULL 6SO |
5,853 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 30kV/µs | DC | Push-Pull, Totem Pole | 50 mA | - | 120ns, 120ns | 6ns, 6ns | 1.5V | 10mA | 4.5V ~ 30V | - | - | -40°C ~ 105°C | Surface Mount | 6-SO |
|
PS9851-1-F3-AXOPTOISO 2.5KV PUSH PULL 8SSOP |
2,323 |
|
Datasheet |
NEPOC | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 2500Vrms | 10kV/µs | DC | Push-Pull, Totem Pole | 2 mA | 15Mbps | 60ns, 60ns | 4ns, 4ns | 1.6V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 8-SSOP |
|
|
PS9513-V-AXOPTOISO 5KV OPEN COLLECTOR 8DIP |
650 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector | 15 mA | 1Mbps | 750ns, 500ns | - | 1.65V | 25mA | 4.5V ~ 20V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP |
|
|
PS9587-V-AXHI-SPD OPTOCPLR 8-PIN DIP |
16 |
|
Datasheet |
NEPOC | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 10ns | 1.65V | 30mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
|
PS9587L3-V-AXHI-SPD OPTOCPLR 8-PIN DIP |
826 |
|
Datasheet |
NEPOC | 8-SMD, Gull Wing | Tube | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 10ns | 1.65V | 30mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SMD |
|

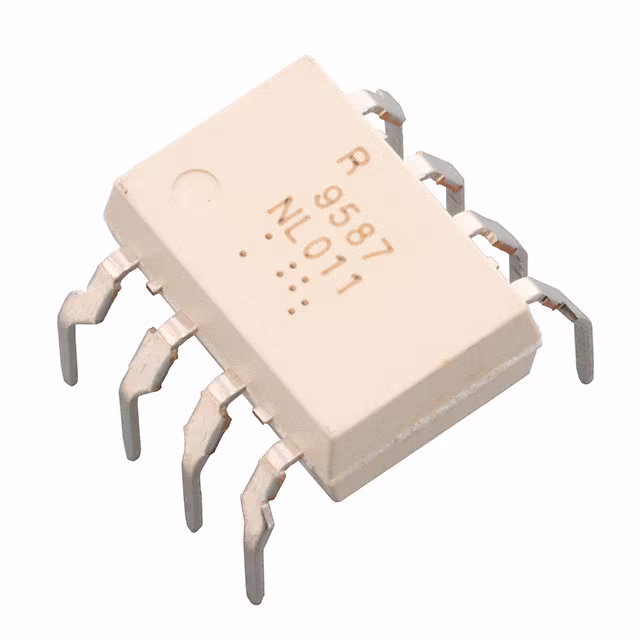

PS9587L1-V-AXHI-SPD OPTOCPLR 8-PIN DIP |
16 |
|
Datasheet |
NEPOC | 8-DIP (0.400", 10.16mm) | Tube | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 10ns | 1.65V | 30mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
RV1S9260ACCSP-10YC#SC0OPTO COUPLER IN 5PIN SSOP |
7 |
|
Datasheet |
- | 5-SMD, Gull Wing | Strip | Active | 1 | 1/0 | 5000Vrms | 50kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 15Mbps | 60ns, 60ns | 5ns, 5ns | 1.55V | 20mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 5-LSSO |
|
|
RV1S9231ACCSP-10YC#SC0IGBT DRIVER (2.5A OUTPUT), LSSO5 |
29 |
|
Datasheet |
- | 5-SMD, Gull Wing | Strip | Active | 1 | 1/0 | 5000Vrms | 50kV/µs | DC | Push-Pull, Totem Pole | 2.5 A | - | 175ns, 175ns | 40ns, 40ns | 1.56V | 20mA | 15V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 5-LSSO |
|
|
RV1S9231ACCSP-10YV#SC0IGBT DRIVER (2.5A OUTPUT), LSSO5 |
9 |
|
Datasheet |
- | 5-SMD, Gull Wing | Strip | Active | 1 | 1/0 | 5000Vrms | 50kV/µs | DC | Push-Pull, Totem Pole | 2.5 A | - | 175ns, 175ns | 40ns, 40ns | 1.56V | 20mA | 15V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 5-LSSO |
|
|
APS2241S21 MBPS TYPE PHOTOIC COUPLER (OP |
113 |
|
Datasheet |
- | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tube | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Open Drain | 10 mA | 20Mbps | 60ns, 60ns | 18ns, 1ns | 1.6V | 25mA | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 5-SOP |
|
|
PS9151-V-AXSO-5 |
500 |
|
Datasheet |
- | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Strip | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector | 2 mA | 15Mbps | 60ns, 60ns | 4ns, 4ns | 1.65V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 5-SO |
|
|
PS9587L2-AXOPTOISO 5KV OPEN COLL 8DIP GW |
147 |
|
Datasheet |
NEPOC | 8-SMD, Gull Wing | Tube | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 10ns | 1.65V | 30mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
ACPL-M46T-500EOPTOISO 4KV OPEN COLLECTOR 5SO |
6,715 |
|
Datasheet |
R²Coupler™ | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 1/0 | 4000Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 15 mA | - | 550ns, 550ns | - | 1.5V | 20mA | 4.5V ~ 30V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 5-SO |
|
|
ACPL-072L-560EOPTOISO 3.75KV PUSH PULL 8SO |
3,752 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 25MBd | 40ns, 40ns | 9ns, 8ns | - | - | 3V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 8-SO Tall |
