Reed Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Coil Voltage | Contact Rating (Current) | Switching Voltage | Coil Current | Contact Material | Coil Type | Features | Contact Form | Termination Style | Seal Rating | Operating Temperature | Must Operate Voltage | Release Time | Must Release Voltage | Operate Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DAR71205TURELAY REED SPST-NO 5KV 12V |
2,770 |
|
Datasheet |
DA | Bulk | Active | Through Hole | 12VDC | 3 A | 1000VAC, 1000VDC - Max | 80 mA | Rhodium (Rh) | Non Latching | - | SPST-NO (1 Form A) | PC Pin, Solder Turret | - | -20°C ~ 70°C | 9 VDC | 2 ms | 1.25 VDC | 3 ms |
|
|
DAR70505PURELAY REED SPST-NO 5KV 5V |
2,683 |
|
Datasheet |
DA | Bulk | Active | Chassis Mount | 5VDC | 3 A | 1000VAC, 1000VDC - Max | 179 mA | Rhodium (Rh) | Non Latching | - | SPST-NO (1 Form A) | Solder Turret | - | -20°C ~ 70°C | 3.7 VDC | 2 ms | 0.5 VDC | 3 ms |
|
|
DAR71205SURELAY REED SPST-NO 5KV 12V |
10 |
|
Datasheet |
DA | Bulk | Active | Chassis Mount | 12VDC | 3 A | 1000VAC, 1000VDC - Max | 80 mA | Rhodium (Rh) | Non Latching | - | SPST-NO (1 Form A) | Quick Connect - 0.250" (6.3mm) | - | -20°C ~ 70°C | 9 VDC | 2 ms | 1.25 VDC | 3 ms |
|

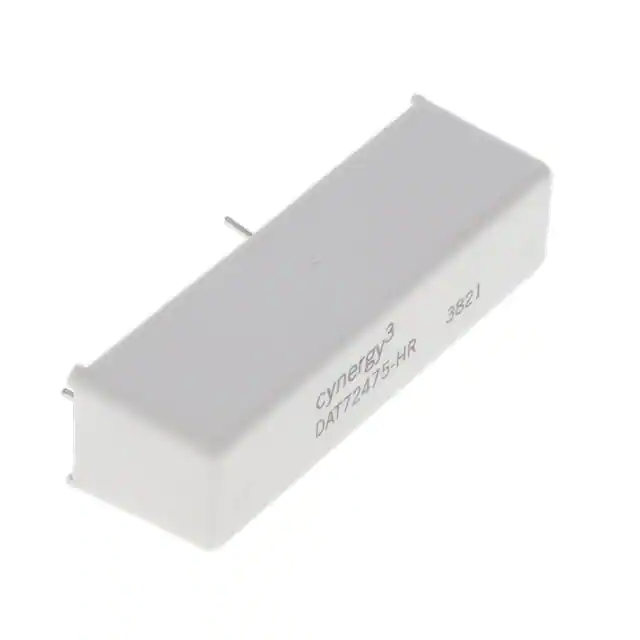

DAT72475-HRRELAY REED 7.5KV 24V SPST-NO |
14 |
|
Datasheet |
D-HR | Bulk | Active | Through Hole | 24VDC | 2 A | 5000VAC, 5000VDC - Max | 30.8 mA | Tungsten (W) | Non Latching | - | SPST-NO (1 Form A) | PC Pin | - | -20°C ~ 70°C | 20 VDC | 2 ms | 4 VDC | 3 ms |
|
|
DAT72405F-HRRELAY REED 5KV 24V SPST-NO |
9 |
|
Datasheet |
D-HR | Bulk | Active | Through Hole | 24VDC | 2 A | 3500VAC, 3500VDC - Max | 30.8 mA | Tungsten (W) | Non Latching | - | SPST-NO (1 Form A) | PC Pin, Wire Leads | - | -20°C ~ 70°C | 20 VDC | 2 ms | 4 VDC | 3 ms |
|
DAR71210URELAY REED SPST-NO 3A 12V |
11 |
|
Datasheet |
DA | Bulk | Active | Through Hole | 12VDC | 3 A | 1000VAC, 1000VDC - Max | 80 mA | Rhodium (Rh) | Non Latching | - | SPST-NO (1 Form A) | PC Pin | - | -20°C ~ 70°C | 9 VDC | 2 ms | 1.25 VDC | 3 ms |
|
DAR70510URELAY REED SPST-NO 3A 5V |
5 |
|
Datasheet |
DA | Bulk | Active | Through Hole | 5VDC | 3 A | 1000VAC, 1000VDC - Max | 179 mA | Rhodium (Rh) | Non Latching | - | SPST-NO (1 Form A) | PC Pin | - | -20°C ~ 70°C | 3.7 VDC | 2 ms | 0.5 VDC | 3 ms |
|
|
DBR70575-HRRELAY REED 7.5KV 5V SPST-NC |
5 |
|
Datasheet |
D-HR | Bulk | Active | Through Hole | 5VDC | 3 A | 1000VAC, 1000VDC - Max | 132 mA | Rhodium (Rh) | Non Latching | - | SPST-NC (1 Form B) | PC Pin | - | -20°C ~ 70°C | 3.7 VDC | 3 ms | 0.5 VDC | 2 ms |
|
|
DBT72405F-HRRELAY REED 5KV 24V SPST-NC |
5 |
|
Datasheet |
D-HR | Bulk | Active | Through Hole | 24VDC | 2 A | 3500VAC, 3500VDC - Max | 25.9 mA | Tungsten (W) | Non Latching | - | SPST-NC (1 Form B) | PC Pin, Wire Leads | - | -20°C ~ 70°C | 20 VDC | 3 ms | 4 VDC | 2 ms |
|
DAT70575FURELAY REED SPST-NO 7.5KV 5V |
20 |
|
Datasheet |
DA | Bulk | Active | Through Hole | 5VDC | 2 A | 5000VAC, 5000VDC - Max | 179 mA | Tungsten (W) | Non Latching | - | SPST-NO (1 Form A) | PC Pin, Wire Leads | - | -20°C ~ 70°C | 3.7 VDC | 2 ms | 0.5 VDC | 3 ms |
|
DAR72410FRELAY REED SPST-NO 3A 24V |
10 |
|
Datasheet |
DA | Tray | Active | Through Hole | 24VDC | 3 A | 1000VAC, 1000VDC - Max | 30.7 mA | Rhodium (Rh) | Non Latching | - | SPST-NO (1 Form A) | PC Pin, Wire Leads | - | -20°C ~ 70°C | 20 VDC | 2 ms | 4 VDC | 3 ms |
|
DAR71210SRELAY REED SPST-NO 3A 12V |
10 |
|
Datasheet |
DA | Bulk | Active | Chassis Mount | 12VDC | 3 A | 1000VAC, 1000VDC - Max | 80 mA | Rhodium (Rh) | Non Latching | - | SPST-NO (1 Form A) | Quick Connect - 0.250" (6.3mm) | - | -20°C ~ 70°C | 9 VDC | 2 ms | 1.25 VDC | 3 ms |
|
DAR70510PRELAY REED SPST-NO 3A 5V |
5 |
|
Datasheet |
DA | Tray | Active | Chassis Mount | 5VDC | 3 A | 1000VAC, 1000VDC - Max | 179 mA | Rhodium (Rh) | Non Latching | - | SPST-NO (1 Form A) | Solder Turret | - | -20°C ~ 70°C | 3.7 VDC | 2 ms | 0.5 VDC | 3 ms |
|
|
DAT70510SRELAY REED SPST-NO 2A 5V |
5 |
|
Datasheet |
DA | Bulk | Active | Chassis Mount | 5VDC | 2 A | 7000VAC, 7000VDC - Max | 179 mA | Tungsten (W) | Non Latching | - | SPST-NO (1 Form A) | Quick Connect - 0.250" (6.3mm) | - | -20°C ~ 70°C | 3.7 VDC | 2 ms | 0.5 VDC | 3 ms |
|
DAR70510F-HRRELAY REED SPST-NO 3A 5V |
5 |
|
Datasheet |
D-HR | Tray | Active | Through Hole | 5VDC | 3 A | 1000VAC, 1000VDC - Max | 179 mA | Rhodium (Rh) | Non Latching | - | SPST-NO (1 Form A) | PC Pin, Wire Leads | - | -20°C ~ 70°C | 3.7 VDC | 2 ms | 0.5 VDC | 3 ms |
|
|
DBR71210FRELAY REED SPST-NC 3A 12V |
20 |
|
Datasheet |
DB | Tray | Active | Through Hole | 12VDC | 3 A | 1000VAC, 1000VDC - Max | 50 mA | Rhodium (Rh) | Non Latching | - | SPST-NC (1 Form B) | PC Pin, Wire Leads | - | -20°C ~ 70°C | 9 VDC | 3 ms | 1.25 VDC | 2 ms |
|
|
DBR71210PRELAY REED SPST-NC 3A 12V |
4 |
|
Datasheet |
DB | Tray | Active | Chassis Mount | 12VDC | 3 A | 1000VAC, 1000VDC - Max | 50 mA | Rhodium (Rh) | Non Latching | - | SPST-NC (1 Form B) | Solder Turret | - | -20°C ~ 70°C | 9 VDC | 3 ms | 1.25 VDC | 2 ms |
|
DAT72410FURELAY REED SPST-NO 2A 24V |
2 |
|
Datasheet |
DA | Bulk | Active | Through Hole | 24VDC | 2 A | 7000VAC, 7000VDC - Max | 30.7 mA | Tungsten (W) | Non Latching | - | SPST-NO (1 Form A) | PC Pin, Wire Leads | - | -20°C ~ 70°C | 20 VDC | 2 ms | 4 VDC | 3 ms |
|
|
DBT71210PRELAY REED SPST-NC 2A 12V |
3 |
|
Datasheet |
DB | Bulk | Active | Chassis Mount | 12VDC | 2 A | 7000VAC, 7000VDC - Max | 50 mA | Tungsten (W) | Non Latching | - | SPST-NC (1 Form B) | Solder Turret | - | -20°C ~ 70°C | 9 VDC | 3 ms | 1.25 VDC | 2 ms |
|
DBT71210FURELAY REED SPST-NC 2A 12V |
6 |
|
Datasheet |
DB | Bulk | Active | Through Hole | 12VDC | 2 A | 7000VAC, 7000VDC - Max | 50 mA | Tungsten (W) | Non Latching | - | SPST-NC (1 Form B) | PC Pin, Wire Leads | - | -20°C ~ 70°C | 9 VDC | 3 ms | 1.25 VDC | 2 ms |
