Reed Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Coil Voltage | Contact Rating (Current) | Switching Voltage | Coil Current | Contact Material | Coil Type | Features | Contact Form | Termination Style | Seal Rating | Operating Temperature | Must Operate Voltage | Release Time | Must Release Voltage | Operate Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MRX05-1A71REED RELAY SPST-NO 5V ATEX PLAST |
76 |
|
Datasheet |
MRX | Tube | Active | Through Hole | 5VDC | 500 mA | 200VAC, 200VDC - Max | 14 mA | - | Non Latching | - | SPST-NO (1 Form A) | PC Pin | Sealed - Fully | -40°C ~ 85°C | 3.8 VDC | 0.1 ms | 1 VDC | 0.5 ms |
|

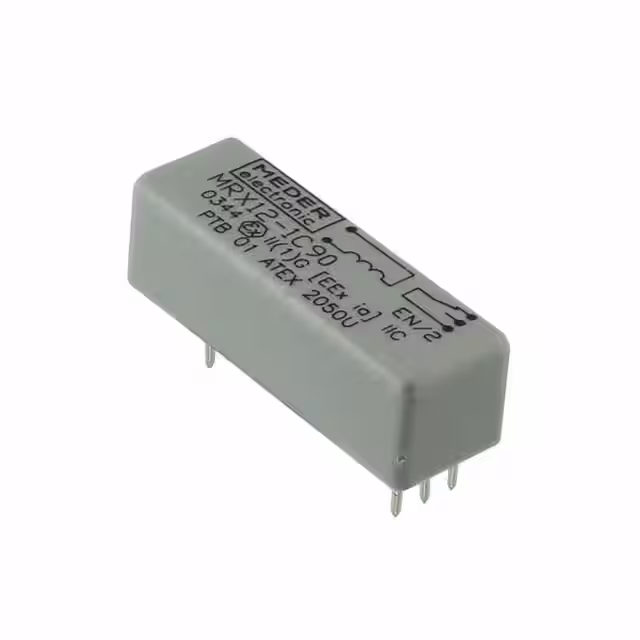

MRX12-1C90REED RELAY SPDT CHANGE 12V ATEX |
49 |
|
Datasheet |
MRX | Tube | Active | Through Hole | 12VDC | 240 mA | 28VAC, 28VDC - Max | 9 mA | - | Non Latching | - | SPDT (1 Form C) | PC Pin | Sealed - Fully | -20°C ~ 85°C | 9 VDC | 2 ms | 2 VDC | 2 ms |
|
BH12-4A85-MHIGH VOLTAGE AND INSULATION REED |
22 |
|
- |
BH | Bulk | Active | Through Hole | 12VDC | 1 A | 1000VAC, 1000VDC - Max | 30 mA | - | Non Latching | - | 4PST-NO (4 Form A) | PC Pin | - | -20°C ~ 70°C | 8.8 VDC | 400 µs | 1.2 VDC | 1.1 ms |
|
|
MRX12-1A71REED RELAY SPST-NO 12V ATEX PLAS |
96 |
|
Datasheet |
MRX | Tube | Active | Through Hole | 12VDC | 500 mA | 200VAC, 200VDC - Max | 9 mA | - | Non Latching | - | SPST-NO (1 Form A) | PC Pin | Sealed - Fully | -20°C ~ 85°C | 9 VDC | 0.2 ms | 2 VDC | 0.5 ms |
|
BT24-2A66RELAY REED DPST 500MA 24V |
52 |
|
Datasheet |
BT | Tube | Active | Through Hole | 24VDC | 500 mA | 200VAC, 200VDC - Max | 1.2 mA | - | Non Latching | - | DPST-NO (2 Form A) | PC Pin | - | -20°C ~ 85°C | 18 VDC | 0.1 ms | 3.5 VDC | 0.5 ms |
|
|
DAT71205F-HRRELAY REED 5KV 12V SPST-NO |
15 |
|
Datasheet |
D-HR | Bulk | Active | Through Hole | 12VDC | 2 A | 3500VAC, 3500VDC - Max | 80 mA | Tungsten (W) | Non Latching | - | SPST-NO (1 Form A) | PC Pin, Wire Leads | - | -20°C ~ 70°C | 9 VDC | 2 ms | 1.25 VDC | 3 ms |
|
|
DAT72405PURELAY REED SPST-NO 5KV 24V |
6 |
|
Datasheet |
DA | Bulk | Active | Chassis Mount | 24VDC | 2 A | 3500VAC, 3500VDC - Max | 30.8 mA | Tungsten (W) | Non Latching | - | SPST-NO (1 Form A) | Solder Turret | - | -20°C ~ 70°C | 20 VDC | 2 ms | 4 VDC | 3 ms |
|
|
DBT71205F-HRRELAY REED 5KV 12V SPST-NC |
6 |
|
Datasheet |
D-HR | Bulk | Active | Through Hole | 12VDC | 2 A | 3500VAC, 3500VDC - Max | 50 mA | Tungsten (W) | Non Latching | - | SPST-NC (1 Form B) | PC Pin, Wire Leads | - | -20°C ~ 70°C | 9 VDC | 3 ms | 1.25 VDC | 2 ms |
|
|
DBT70575URELAY REED SPST-NC 7.5KV 5V |
5 |
|
Datasheet |
DB | Bulk | Active | Through Hole | 5VDC | 2 A | 5000VAC, 5000VDC - Max | 132 mA | Tungsten (W) | Non Latching | - | SPST-NC (1 Form B) | PC Pin | - | -20°C ~ 70°C | 3.7 VDC | 3 ms | 0.5 VDC | 2 ms |
|
|
DAT70575PURELAY REED SPST-NO 7.5KV 5V |
7 |
|
Datasheet |
DA | Bulk | Active | Chassis Mount | 5VDC | 2 A | 5000VAC, 5000VDC - Max | 179 mA | Tungsten (W) | Non Latching | - | SPST-NO (1 Form A) | Solder Turret | - | -20°C ~ 70°C | 3.7 VDC | 2 ms | 0.5 VDC | 3 ms |
|
DAT72410SURELAY REED SPST-NO 2A 24V |
4 |
|
Datasheet |
DA | Bulk | Active | Chassis Mount | 24VDC | 2 A | 7000VAC, 7000VDC - Max | 30.7 mA | Tungsten (W) | Non Latching | - | SPST-NO (1 Form A) | Quick Connect - 0.250" (6.3mm) | - | -20°C ~ 70°C | 20 VDC | 2 ms | 4 VDC | 3 ms |
|
HE12-1B83RELAY REED SPST 3A 12V |
9 |
|
Datasheet |
HE | Bulk | Active | Through Hole | 12VDC | 3 A | 7500VAC, 7500VDC - Max | 30 mA | - | Non Latching | - | SPST-NC (1 Form B) | PC Pin | - | -20°C ~ 70°C | 9 VDC | 1.5 ms | 1 VDC | 3 ms |
|
DBR71210F-HRRELAY REED SPST-NC 3A 12V |
13 |
|
Datasheet |
D-HR | Tray | Active | Through Hole | 12VDC | 3 A | 1000VAC, 1000VDC - Max | 50 mA | Rhodium (Rh) | Non Latching | - | SPST-NC (1 Form B) | PC Pin, Wire Leads | - | -20°C ~ 70°C | 9 VDC | 3 ms | 1.25 VDC | 2 ms |
|
|
DBT71210F-HRRELAY REED SPST-NC 2A 12V |
19 |
|
Datasheet |
D-HR | Tray | Active | Through Hole | 12VDC | 2 A | 7000VAC, 7000VDC - Max | 50 mA | Tungsten (W) | Non Latching | - | SPST-NC (1 Form B) | PC Pin, Wire Leads | - | -20°C ~ 70°C | 9 VDC | 3 ms | 1.25 VDC | 2 ms |
|
|
DAT70515TRELAY REED HV 15KV N/O 5VDC PCB |
25 |
|
Datasheet |
D | Bulk | Active | Through Hole | 5VDC | 2 A | 1000VAC, 1000VDC - Max | 312.5 mA | Tungsten (W) | Non Latching | - | SPST-NO (1 Form A) | PC Pin, Solder Turret | - | -20°C ~ 70°C | 3.7 VDC | 2 ms | 0.5 VDC | 3 ms |
|
|
DAT72415TRELAY REED HV 15KV N/O 24VDC PCB |
5 |
|
Datasheet |
D | Bulk | Active | Through Hole | 24VDC | 2 A | 1000VAC, 1000VDC - Max | 68.6 mA | Tungsten (W) | Non Latching | - | SPST-NO (1 Form A) | PC Pin, Solder Turret | - | -20°C ~ 70°C | 20 VDC | 2 ms | 4 VDC | 3 ms |
|
|
SIP-1A05D200V/1A REED RELAY, 1 FORM A, 5V |
51 |
|
Datasheet |
SIP | Tube | Active | Through Hole | 5VDC | 500 mA | 100VAC, 100VDC - Max | 10 mA | - | Non Latching | Diode | SPST-NO (1 Form A) | PC Pin | - | -40°C ~ 80°C | 3.75 VDC | 0.5 ms | 0.6 VDC | 1 ms |
|
|
DIP-1A05200V/1A REED RELAY, 1 FORM A, 5V |
62 |
|
Datasheet |
DIP | Tube | Active | Through Hole | 5VDC | 500 mA | 100VAC, 100VDC - Max | 10 mA | - | Non Latching | - | SPST-NO (1 Form A) | PC Pin | - | -20°C ~ 85°C | 3.75 VDC | 0.5 ms | 0.6 VDC | 1 ms |
|
|
DIP-1A12200V/1A REED RELAY, 1 FORM A, 12 |
100 |
|
Datasheet |
DIP | Tube | Active | Through Hole | 12VDC | 500 mA | 100VAC, 100VDC - Max | 12 mA | - | Non Latching | - | SPST-NO (1 Form A) | PC Pin | - | -20°C ~ 85°C | 9 VDC | 0.5 ms | 1 VDC | 1 ms |
|
|
DIP-1A05D200V/1A REED RELAY, 1 FORM A, 5V |
55 |
|
Datasheet |
DIP | Tube | Active | Through Hole | 5VDC | 500 mA | 100VAC, 100VDC - Max | 10 mA | - | Non Latching | Diode | SPST-NO (1 Form A) | PC Pin | - | -20°C ~ 85°C | 3.75 VDC | 0.5 ms | 0.6 VDC | 1 ms |
