Reed Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Coil Voltage | Contact Rating (Current) | Switching Voltage | Coil Current | Contact Material | Coil Type | Features | Contact Form | Termination Style | Seal Rating | Operating Temperature | Must Operate Voltage | Release Time | Must Release Voltage | Operate Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFM-1C-05CWRELAY REED SPDT .25A 5V |
87 |
|
Datasheet |
BFM-CW | Tube | Active | Through Hole | 5VDC | 250 mA | 150VDC - Max | 20.8 mA | Ruthenium (Ru) | Non Latching | - | SPDT (1 Form C) | PC Pin | - | -25°C ~ 85°C | 2.5 VDC | 2 ms | 0.4 VDC | 1 ms |
|
JWD-171-23RELAY REED DPST 500MA 12V |
4,083 |
|
Datasheet |
JWD | Tube | Active | Through Hole | 12VDC | 500 mA | 100VDC - Max | 24 mA | Ruthenium (Ru) | Non Latching | - | DPST-NO (2 Form A) | PC Pin | - | -35°C ~ 85°C | 9.6 VDC | 0.5 ms | 1 VDC | 1.5 ms |
|
BFM-1C05C200V/1.0A REED RELAY, 1 FORM C, |
100 |
|
Datasheet |
BFM | Tube | Active | Through Hole | 5VDC | 250 mA | 150VDC - Max | 22 mA | - | Non Latching | Coaxial Shield | SPDT (1 Form C) | PC Pin | Sealed - Hermetically | -25°C ~ 85°C | 3.8 VDC | 2 ms | 0.4 VDC | 1 ms |
|
|
BFM-1C12C200V/1.0A REED RELAY, 1 FORM C, |
93 |
|
Datasheet |
BFM | Tube | Active | Through Hole | 12VDC | 250 mA | 150VDC - Max | 8 mA | - | Non Latching | Coaxial Shield | SPDT (1 Form C) | PC Pin | Sealed - Hermetically | -25°C ~ 85°C | 9 VDC | 2 ms | 1 VDC | 1 ms |
|
|
JWD-171-25RELAY REED DPST 500MA 5V |
23 |
|
Datasheet |
JWD | Tube | Active | Through Hole | 5VDC | 500 mA | 100VDC - Max | 25 mA | Ruthenium (Ru) | Non Latching | Diode | DPST-NO (2 Form A) | PC Pin | - | -35°C ~ 85°C | 3.8 VDC | 0.5 ms | 0.5 VDC | 1.5 ms |
|
|
V23100V4312C011RELAY REED SPDT 250MA 12V |
4,974 |
|
Datasheet |
V23100-V4, AXICOM | Tube | Active | Through Hole | 12VDC | 250 mA | 175VDC - Max | 24 mA | Ruthenium (Ru) | Non Latching | Diode, Electrostatic Shield | SPDT (1 Form C) | PC Pin | - | -40°C ~ 85°C | 8.4 VDC | 1.6 ms | 1.8 VDC | 1.1 ms |
|
|
BFH-2C12200V/0.5A REED RELAY, 2 FORM C, |
83 |
|
Datasheet |
BFH | Tube | Active | Through Hole | 12VDC | 250 mA | 100VDC - Max | 24 mA | - | Non Latching | - | DPDT (2 Form C) | PC Pin | Sealed - Hermetically | -40°C ~ 125°C | 6.7 VDC | 2 ms | 1 VDC | 1.5 ms |
|
|
BFH-2A05W250V/1.5A HIGH TEMPERATURE REED |
11 |
|
Datasheet |
BFH | Tube | Active | Through Hole | 5VDC | 500 mA | 200VDC - Max | 55.6 mA | - | Non Latching | - | DPST-NO (2 Form A) | PC Pin | Sealed - Hermetically | -40°C ~ 125°C | 2.5 VDC | 0.15 ms | 0.4 VDC | 0.5 ms |
|
|
BU-1C056GHZ, 200V/0.2A HIGH FREQUENCE R |
45 |
|
Datasheet |
BU | Tube | Active | Surface Mount | 5VDC | 100 mA | 30VAC, 30VDC - Max | 45.5 mA | - | Non Latching | - | SPDT (1 Form C) | Gull Wing | Sealed - Hermetically | -20°C ~ 85°C | 3.8 VDC | 0.3 ms | 0.4 VDC | 0.3 ms |
|
7201-05-1100RELAY REED SPST 1A 5V |
79 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 5VDC | 1 A | 500VAC, 500VDC - Max | 71.4 mA | - | Non Latching | - | SPST-NO (1 Form A) | PC Pin | - | -20°C ~ 85°C | 3.75 VDC | 1 ms | 0.4 VDC | 2 ms |
|
HE12-1A83-03RELAY REED SPST 3A 12V |
10 |
|
Datasheet |
HE | Tube | Active | Through Hole | 12VDC | 3 A | 7500VAC, 7500VDC - Max | 46.2 mA | - | Non Latching | - | SPST-NO (1 Form A) | PC Pin | - | -20°C ~ 70°C | 9 VDC | 1.5 ms | 1 VDC | 3 ms |
|

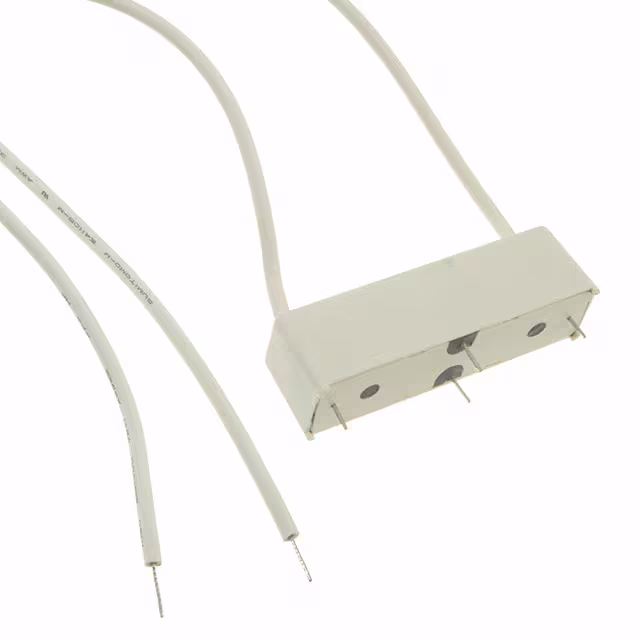

DAR70505FURELAY REED SPST-NO 5KV 5V |
4 |
|
Datasheet |
DA | Bulk | Active | Through Hole | 5VDC | 3 A | 1000VAC, 1000VDC - Max | 179 mA | Rhodium (Rh) | Non Latching | - | SPST-NO (1 Form A) | PC Pin, Wire Leads | - | -20°C ~ 70°C | 3.7 VDC | 2 ms | 0.5 VDC | 3 ms |
|
|
DAR72405TURELAY REED SPST-NO 5KV 24V |
4,619 |
|
Datasheet |
DA | Bulk | Active | Through Hole | 24VDC | 3 A | 1000VAC, 1000VDC - Max | 30.8 mA | Rhodium (Rh) | Non Latching | - | SPST-NO (1 Form A) | PC Pin, Solder Turret | - | -20°C ~ 70°C | 20 VDC | 2 ms | 4 VDC | 3 ms |
|
|
DAT70505TURELAY REED SPST-NO 5KV 5V |
3,173 |
|
Datasheet |
DA | Bulk | Active | Through Hole | 5VDC | 2 A | 3500VAC, 3500VDC - Max | 179 mA | Tungsten (W) | Non Latching | - | SPST-NO (1 Form A) | PC Pin, Solder Turret | - | -20°C ~ 70°C | 3.7 VDC | 2 ms | 0.5 VDC | 3 ms |
|
|
DAT72405TURELAY REED SPST-NO 5KV 24V |
3,010 |
|
Datasheet |
DA | Bulk | Active | Through Hole | 24VDC | 2 A | 3500VAC, 3500VDC - Max | 30.8 mA | Tungsten (W) | Non Latching | - | SPST-NO (1 Form A) | PC Pin, Solder Turret | - | -20°C ~ 70°C | 20 VDC | 2 ms | 4 VDC | 3 ms |
|
|
V23100V6002A201RELAY REED DPST 750MA 12V |
3,531 |
|
Datasheet |
V23100-V6, AXICOM | Bulk | Active | Through Hole | 12VDC | 750 mA | 24VDC - Nom | 10.9 mA | Rhodium (Rh), Ruthenium (Ru) | Non Latching | - | DPST-NO (2 Form A) | PC Pin | - | - | - | - | - | - |
|
7202-12-1100RELAY REED DPST 1A 12V |
89 |
|
Datasheet |
7000 | Tube | Obsolete | Through Hole | 12VDC | 1 A | 500VAC, 500VDC - Max | 35.2 mA | - | Non Latching | - | DPST-NO (2 Form A) | PC Pin | - | -20°C ~ 85°C | 9 VDC | 1 ms | 1 VDC | 2 ms |
|
DAT71205FURELAY REED SPST-NO 5KV 12V |
3 |
|
Datasheet |
DA | Bulk | Active | Through Hole | 12VDC | 2 A | 3500VAC, 3500VDC - Max | 80 mA | Tungsten (W) | Non Latching | - | SPST-NO (1 Form A) | PC Pin, Wire Leads | - | -20°C ~ 70°C | 9 VDC | 2 ms | 1.25 VDC | 3 ms |
|
|
DBR70505SURELAY REED SPST-NC 5KV 5V |
3,625 |
|
Datasheet |
DB | Bulk | Active | Chassis Mount | 5VDC | 3 A | 1000VAC, 1000VDC - Max | 132 mA | Rhodium (Rh) | Non Latching | - | SPST-NC (1 Form B) | Quick Connect - 0.250" (6.3mm) | - | -20°C ~ 70°C | 3.7 VDC | 3 ms | 0.5 VDC | 2 ms |
|
DBR70505FURELAY REED SPST-NC 5KV 5V |
2,533 |
|
Datasheet |
DB | Bulk | Active | Through Hole | 5VDC | 3 A | 1000VAC, 1000VDC - Max | 132 mA | Rhodium (Rh) | Non Latching | - | SPST-NC (1 Form B) | PC Pin, Wire Leads | - | -20°C ~ 70°C | 3.7 VDC | 3 ms | 0.5 VDC | 2 ms |
