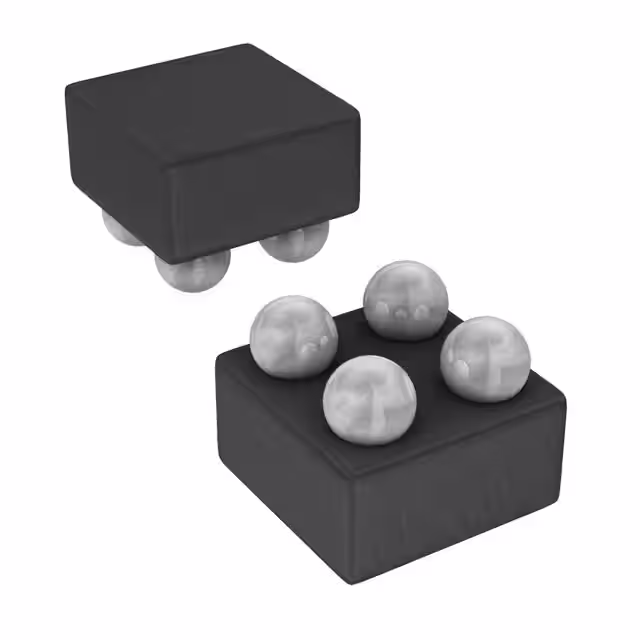

Nexperia USA Inc. PMCM440VNE/S500Z
- Part No.:
- PMCM440VNE/S500Z
- Manufacturer:
- Nexperia USA Inc.
- Category:
- FETs, MOSFETs
- Package:
- 4-XFBGA, WLCSP
- Datasheet:
-
PMCM440VNE/S500Z.pdf
- Description:
- MOSFET N-CHANNEL 12V 5A 4WLCSP
- Quantity:
- Payment:
- Shipping:
Product details
- Specifications
- FAQ
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Nexperia USA Inc.
- Series:
- TrenchMOS™
- Package/Case:
- 4-XFBGA, WLCSP
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Obsolete
- FET Type:
- N-Channel
- Technology:
- MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss):
- 12 V
- Current - Continuous Drain (Id) @ 25°C:
- 5A (Ta)
- Drive Voltage (Max Rds On, Min Rds On):
- 1.5V, 4.5V
- Rds On (Max) @ Id, Vgs:
- 67mOhm @ 3A, 4.5V
- Vgs(th) (Max) @ Id:
- 900mV @ 250µA
- Gate Charge (Qg) (Max) @ Vgs:
- 8.2 nC @ 4.5 V
- Vgs (Max):
- ±8V
- Input Capacitance (Ciss) (Max) @ Vds:
- 360 pF @ 6 V
- FET Feature:
- -
- Power Dissipation (Max):
- 12.5W (Tc)
- Operating Temperature:
- -55°C ~ 150°C (TJ)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 4-WLCSP (0.78x0.78)
1. How to order PMCM440VNE/S500Z on KATY Electronic Technology Co., LTD?
Currently, KATY Electronic Technology Co., LTD only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.
2. How does KATY Electronic Technology Co., LTD guarantee that PMCM440VNE/S500Z is from the original manufacturer or authorized agents?
We have a professional and experienced quality control team to strictly verify and test the PMCM440VNE/S500Z. All suppliers must pass our qualification reviews before they can publish their products including PMCM440VNE/S500Z on KATY Electronic Technology Co., LTD; we pay more attention to the channels and quality of PMCM440VNE/S500Z products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.
3. Are the PMCM440VNE/S500Z price and inventory displayed accurate?
The price and inventory of PMCM440VNE/S500Z fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.
4. What forms of payment are accepted?
Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.
Warm Tips: Some orders in certain payment forms may require handling fee.
5. How is the shipping arranged?
Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.
Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.
Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.
6. What is the process for return or replacement of PMCM440VNE/S500Z?
All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the PMCM440VNE/S500Z we delivered, we will accept the replacement or return of the PMCM440VNE/S500Z only when all of the below conditions are fulfilled:
(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.
(2)We are informed of the defect described above within 90 days after the delivery of PMCM440VNE/S500Z.
(3)The PartNo is unused and only in the original unpacked packaging.
Two processes to return the products:
(1)Inform us within 90 days
(2)Obtain Requesting Return Authorizations
7.How to contact us to get technical supports, such as PMCM440VNE/S500Z pin diagram, PMCM440VNE/S500Z datasheet?
If you need any after-sales service, please do not hesitate to contact us.
| Image |  |
 |
| Part Number | PMCM440VNEZ | PMCM440VNE/S500Z |
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. |
| Series | - | TrenchMOS™ |
| Package/Case | 4-XFBGA, WLCSP | 4-XFBGA, WLCSP |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 12 V | 12 V |
| Current - Continuous Drain (Id) @ 25°C | 3.9A (Ta) | 5A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V | 1.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 67mOhm @ 3A, 4.5V | 67mOhm @ 3A, 4.5V |
| Vgs(th) (Max) @ Id | 900mV @ 250µA | 900mV @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 8.2 nC @ 4.5 V | 8.2 nC @ 4.5 V |
| Vgs (Max) | ±8V | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 360 pF @ 6 V | 360 pF @ 6 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 400mW (Ta), 12.5W (Tc) | 12.5W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Grade | - | - |
| Qualification | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | 4-WLCSP (0.78x0.78) | 4-WLCSP (0.78x0.78) |
