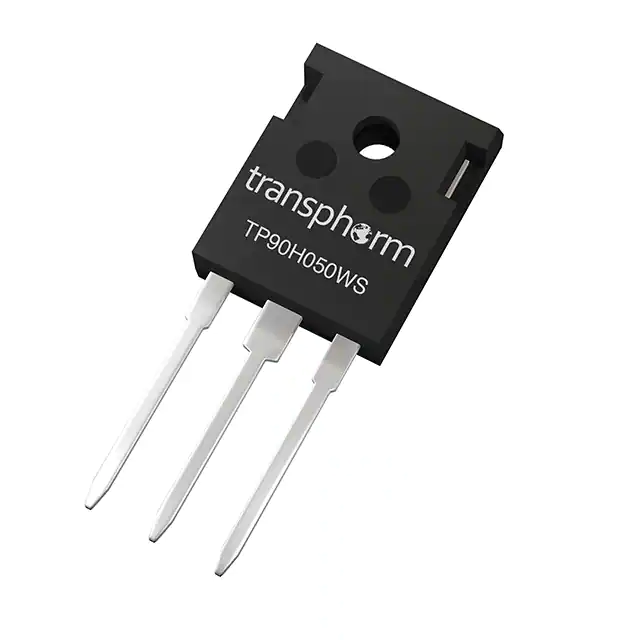

Transphorm TP90H050WS

Name: TP90H050WS
Brand: Transphorm
SKU: TP90H050WS
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: TP90H050WS

Manufacturer:: Transphorm

Category:: FETs, MOSFETs

Package:: TO-247-3

Datasheet:: TP90H050WS.pdf

Description:: GANFET N-CH 900V 34A TO247-3

Quantity:: RFQ Add To RFQ list

Payment:

Shipping:

Product details

Specifications
FAQ
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Transphorm

Series:: -

Package/Case:: TO-247-3

Packaging:: Tube

Product Status:: Obsolete

FET Type:: N-Channel

Technology:: GaNFET (Cascode Gallium Nitride FET)

Drain to Source Voltage (Vdss):: 900 V

Current - Continuous Drain (Id) @ 25°C:: 34A (Tc)

Drive Voltage (Max Rds On, Min Rds On):: 10V

Rds On (Max) @ Id, Vgs:: 63mOhm @ 22A, 10V

Vgs(th) (Max) @ Id:: 4.4V @ 700µA

Gate Charge (Qg) (Max) @ Vgs:: 17.5 nC @ 10 V

Vgs (Max):: ±20V

Input Capacitance (Ciss) (Max) @ Vds:: 980 pF @ 600 V

FET Feature:: -

Power Dissipation (Max):: 119W (Tc)

Operating Temperature:: -55°C ~ 150°C

Grade:: -

Qualification:: -

Mounting Type:: Through Hole

Supplier Device Package:: TO-247-3
