Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1.5mm.jpg)
|
784383350047FIXED IND 470NH 4.6A 23 MOHM SMD Würth Elektronik |
356 |
|
Datasheet |
WE-MAIA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 470 nH | ±30% | 4.6 A | 5.8A | Shielded | 23mOhm Max | - | 105MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3015 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
744303015FIXED IND 155NH 31A 0.000325OHM Würth Elektronik |
232 |
|
Datasheet |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 155 nH | ±20% | 31 A | 51.5A | Shielded | 0.325mOhm | - | 110MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1050 | 0.394" L x 0.276" W (10.00mm x 7.00mm) | 0.197" (5.00mm) |
|

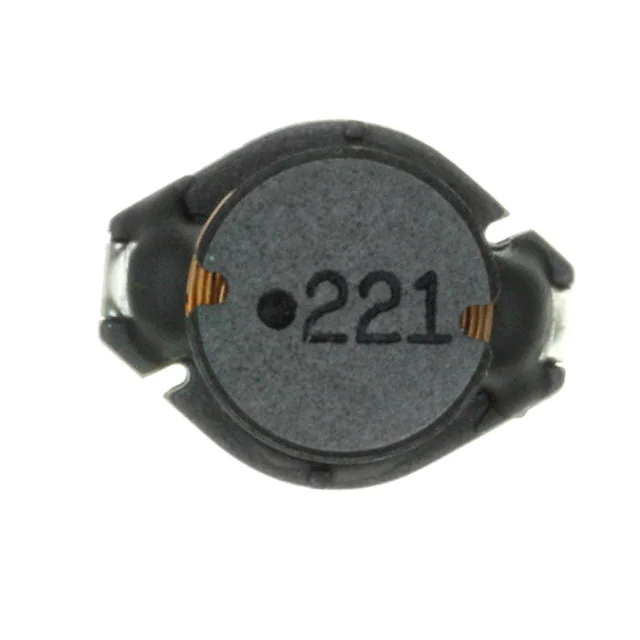

74456222FIXED IND 220UH 900MA 780MOHM SM Würth Elektronik |
11,994 |
|
Datasheet |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 900 mA | 1.1A | Unshielded | 780mOhm Max | - | 4.7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.209" (5.30mm) |
|
744066470FIXED IND 47UH 1.75A 160MOHM SMD Würth Elektronik |
6,310 |
|
Datasheet |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±30% | 1.75 A | 1.85A | Shielded | 160mOhm Max | - | 8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.161" (4.10mm) |
|
|
744066681FIXED IND 680UH 460MA 2.15OHM SM Würth Elektronik |
4,665 |
|
Datasheet |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±30% | 460 mA | 500mA | Shielded | 2.15Ohm Max | - | 2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.161" (4.10mm) |
|
7443082010FIXED IND 100NH 60A 0.00018OHM Würth Elektronik |
2,486 |
|
Datasheet |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 100 nH | ±10% | 60 A | 114.1A | Shielded | 0.18mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1088 | 0.402" L x 0.315" W (10.20mm x 8.00mm) | 0.319" (8.10mm) |
|
|
744066005FIXED IND 5UH 4.9A 22 MOHM SMD Würth Elektronik |
2,360 |
|
Datasheet |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5 µH | ±30% | 4.9 A | 5.5A | Shielded | 22mOhm Max | - | 30MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.161" (4.10mm) |
|
|
744066180FIXED IND 18UH 2.8A 68 MOHM SMD Würth Elektronik |
2,334 |
|
Datasheet |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±30% | 2.8 A | 3A | Shielded | 68mOhm Max | - | 14MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.161" (4.10mm) |
|

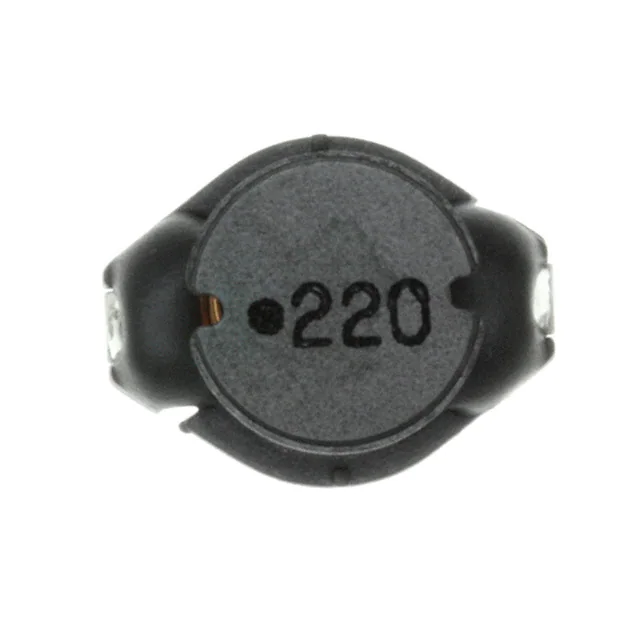

74456122FIXED IND 22UH 2.6A 95 MOHM SMD Würth Elektronik |
2,329 |
|
Datasheet |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 2.6 A | 3.1A | Unshielded | 95mOhm Max | - | 14MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.209" (5.30mm) |
|
|
744066330FIXED IND 33UH 2.1A 112 MOHM SMD Würth Elektronik |
2,006 |
|
Datasheet |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±30% | 2.1 A | 1.8A | Shielded | 112mOhm Max | - | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.161" (4.10mm) |
