Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

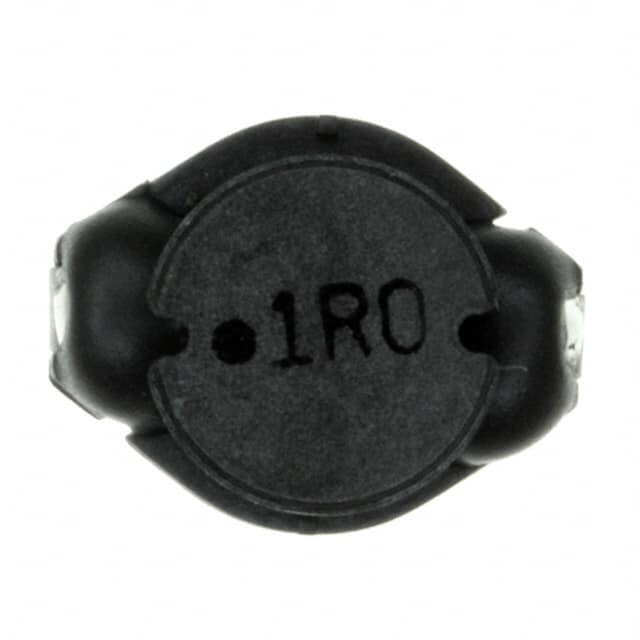

7445601FIXED IND 1UH 8.6A 7 MOHM SMD Würth Elektronik |
1,623 |
|
Datasheet |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 8.6 A | 14.25A | Unshielded | 7mOhm Max | - | 95MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.209" (5.30mm) |
|
744066331FIXED IND 330UH 600MA 1 OHM SMD Würth Elektronik |
1,445 |
|
Datasheet |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±30% | 600 mA | 700mA | Shielded | 1Ohm Max | - | 6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.161" (4.10mm) |
|
|
744066151FIXED IND 150UH 1A 470 MOHM SMD Würth Elektronik |
1,424 |
|
Datasheet |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±30% | 1 A | 1.1A | Shielded | 470mOhm Max | - | 6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.161" (4.10mm) |
|
74456247FIXED IND 470UH 600MA 1.7OHM SMD Würth Elektronik |
1,144 |
|
Datasheet |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 600 mA | 650mA | Unshielded | 1.7Ohm Max | - | 3.1MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.209" (5.30mm) |
|

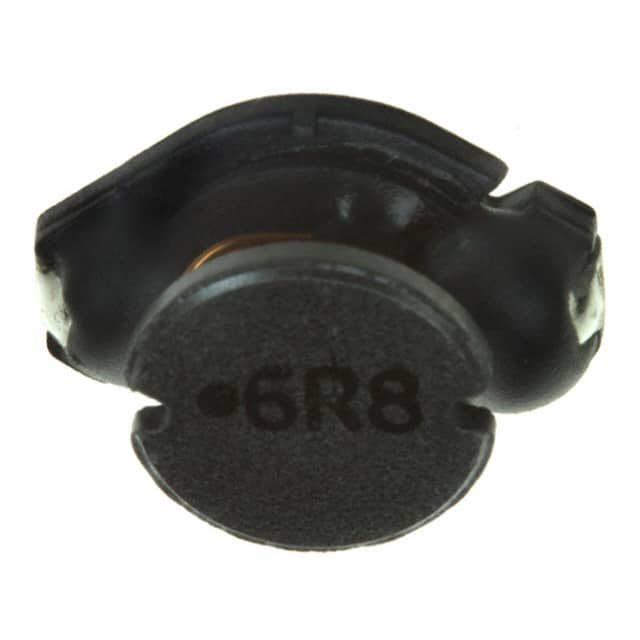

74456068FIXED IND 6.8UH 3.8A 34 MOHM SMD Würth Elektronik |
1,043 |
|
Datasheet |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 3.8 A | 5.1A | Unshielded | 34mOhm Max | - | 30MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.209" (5.30mm) |
|

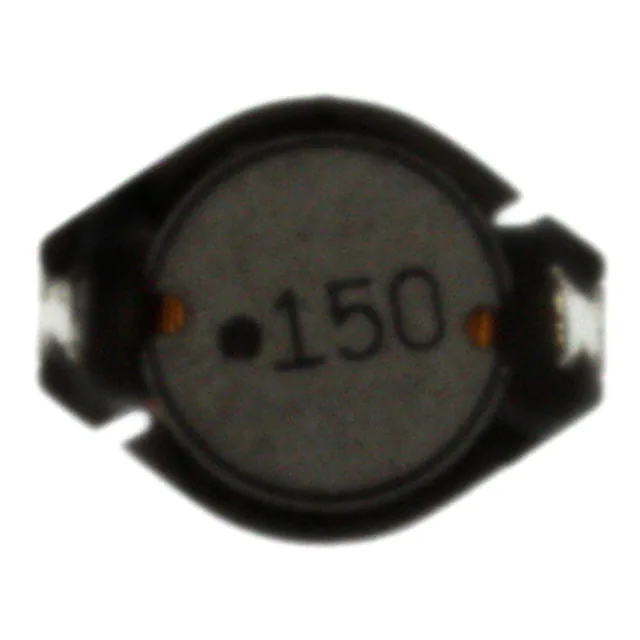

74456115FIXED IND 15UH 2.9A 60 MOHM SMD Würth Elektronik |
769 |
|
Datasheet |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.9 A | 3.6A | Unshielded | 60mOhm Max | - | 17MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.209" (5.30mm) |
|
7443082018AFIXED IND 180NH 65A 0.00015OHM Würth Elektronik |
733 |
|
Datasheet |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 180 nH | ±10% | 65 A | 72.7A | Shielded | 0.15mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1088 | 0.402" L x 0.319" W (10.20mm x 8.10mm) | 0.315" (8.00mm) |
|

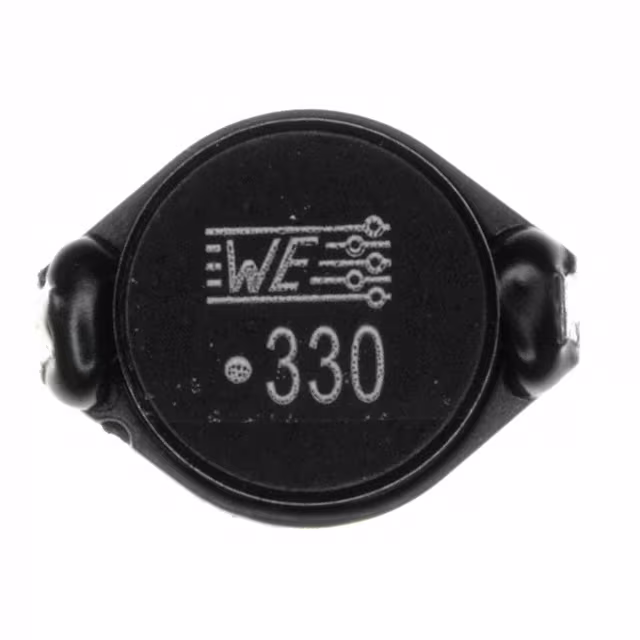

74458133FIXED IND 33UH 3A 66 MOHM SMD Würth Elektronik |
628 |
|
Datasheet |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 3 A | 5.5A | Unshielded | 66mOhm Max | - | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.280" (7.11mm) |
|
|
7443082015FIXED IND 150NH 60A 0.00018OHM Würth Elektronik |
613 |
|
Datasheet |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 150 nH | ±10% | 60 A | 87.1A | Shielded | 0.18mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1088 | 0.402" L x 0.315" W (10.20mm x 8.00mm) | 0.319" (8.10mm) |
|
74456022FIXED IND 2.2UH 6.5A 11 MOHM SMD Würth Elektronik |
534 |
|
Datasheet |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 6.5 A | 10.2A | Unshielded | 11mOhm Max | - | 63MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.209" (5.30mm) |
