Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744066221FIXED IND 220UH 750MA 740MOHM SM Würth Elektronik |
468 |
|
Datasheet |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±30% | 750 mA | 850mA | Shielded | 740mOhm Max | - | 6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.161" (4.10mm) |
|
74456056FIXED IND 5.6UH 4A 32 MOHM SMD Würth Elektronik |
407 |
|
Datasheet |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±20% | 4 A | 6A | Unshielded | 32mOhm Max | - | 31MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.209" (5.30mm) |
|
74438356018HTFIXED IND 1.8UH 4.6A 29.9MOHM SM Würth Elektronik |
5,180 |
|
Datasheet |
WE-MAPI | 1616 (4040 Metric) | Tape & Reel (TR) | Active | - | - | 1.8 µH | ±20% | 4.6 A | 6.2A | Shielded | 29.9mOhm Max | - | 37.5MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 4020 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
74438356033HTFIXED IND 3.3UH 3.6A 51.8MOHM SM Würth Elektronik |
3,887 |
|
Datasheet |
WE-MAPI | 1616 (4040 Metric) | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±20% | 3.6 A | 4.8A | Shielded | 51.8mOhm Max | - | 25.5MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 4020 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
74438356010HTFIXED IND 1UH 7.2A 15.5MOHM SMD Würth Elektronik |
1,892 |
|
Datasheet |
WE-MAPI | 1616 (4040 Metric) | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 7.2 A | 6.5A | Shielded | 15.5mOhm Max | - | 46MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 4020 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
744383560056HTFIXED IND 560NH 8.2A 8.6MOHM SMD Würth Elektronik |
1,332 |
|
Datasheet |
WE-MAPI | 1616 (4040 Metric) | Tape & Reel (TR) | Active | - | - | 560 nH | ±20% | 8.2 A | 9.55A | Shielded | 8.6mOhm Max | - | 72MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 4020 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
7447783220FIXED IND 22UH 1.75A 115MOHM SMD Würth Elektronik |
1,151 |
|
Datasheet |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.75 A | 2.15A | Shielded | 115mOhm Max | - | 18MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.291" L x 0.287" W (7.40mm x 7.30mm) | 0.138" (3.50mm) |
|
|
7447783221FIXED IND 220UH 540MA 1.04OHM SM Würth Elektronik |
891 |
|
Datasheet |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 540 mA | 690mA | Shielded | 1.04Ohm Max | - | 5MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.291" L x 0.287" W (7.40mm x 7.30mm) | 0.138" (3.50mm) |
1.5mm.jpg)
|
78438335150FIXED IND 15UH 650MA 830MOHM SMD Würth Elektronik |
1,305 |
|
Datasheet |
WE-MAIA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 15 µH | ±30% | 650 mA | 1.71A | Shielded | 830mOhm Max | - | 14MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3015 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
.8mm.jpg)
|

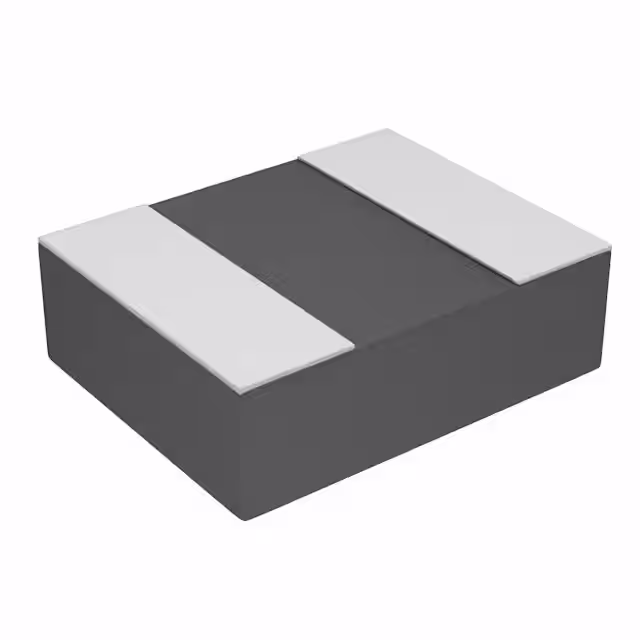

78438322010FIXED IND 1UH 1.75A 133 MOHM SMD Würth Elektronik |
1,230 |
|
Datasheet |
WE-MAIA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 1 µH | ±30% | 1.75 A | 3.35A | Shielded | 133mOhm Max | - | 100MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2508 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.031" (0.80mm) |
