Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

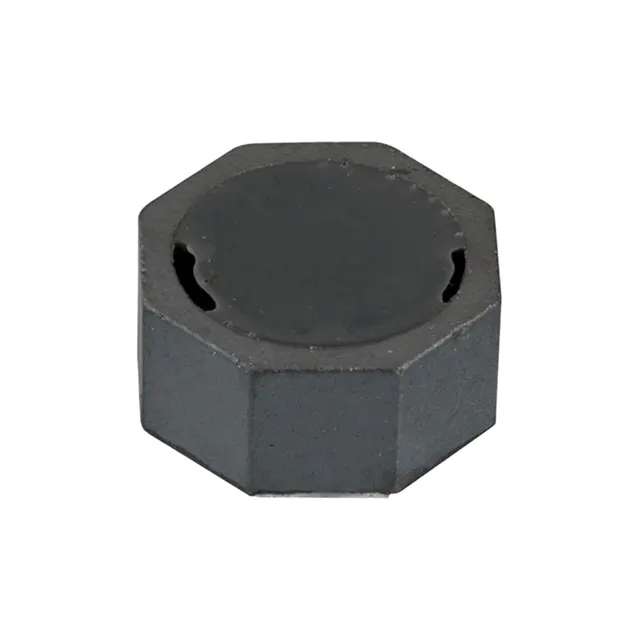

744071221FIXED IND 220UH 720MA 610MOHM SM Würth Elektronik |
774 |
|
Datasheet |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±30% | 720 mA | 600mA | Shielded | 610mOhm Max | - | 5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.181" (4.60mm) |
1.5mm.jpg)
|
78438335330FIXED IND 33UH 500MA 1.33OHM SMD Würth Elektronik |
172 |
|
Datasheet |
WE-MAIA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 33 µH | ±30% | 500 mA | 1.3A | Shielded | 1.33Ohm Max | - | 10MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3015 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
7447773331FIXED IND 330UH 530MA 1.085 OHM Würth Elektronik |
3,405 |
|
Datasheet |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 530 mA | 660mA | Shielded | 1.085Ohm Max | - | 3.6MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 7345 | 0.291" L x 0.287" W (7.40mm x 7.30mm) | 0.177" (4.50mm) |
|
744340300025FIXED IND 25NH 27A 0.00027OHM SM Würth Elektronik |
2,275 |
|
Datasheet |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 25 nH | ±15% | 27 A | 51A | Shielded | 0.27mOhm | - | 180MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4030 | 0.189" L x 0.122" W (4.80mm x 3.10mm) | 0.118" (3.00mm) |
|
|
744340300030FIXED IND 30NH 27A 0.00027OHM SM Würth Elektronik |
1,915 |
|
Datasheet |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 30 nH | ±15% | 27 A | 50.6A | Shielded | 0.27mOhm | - | 170MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4030 | 0.189" L x 0.122" W (4.80mm x 3.10mm) | 0.118" (3.00mm) |
|
7447773033FIXED IND 3.3UH 4.3A 21 MOHM SMD Würth Elektronik |
1,673 |
|
Datasheet |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 4.3 A | 6.6A | Shielded | 21mOhm Max | - | 51MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 7345 | 0.291" L x 0.287" W (7.40mm x 7.30mm) | 0.177" (4.50mm) |
|
|
7447773047FIXED IND 4.7UH 3.6A 26 MOHM SMD Würth Elektronik |
966 |
|
Datasheet |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 3.6 A | 5.5A | Shielded | 26mOhm Max | - | 35.5MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 7345 | 0.291" L x 0.287" W (7.40mm x 7.30mm) | 0.177" (4.50mm) |
|
744071047FIXED IND 4.7UH 4.8A 22 MOHM SMD Würth Elektronik |
911 |
|
Datasheet |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 4.8 A | 4.3A | Shielded | 22mOhm Max | - | 35MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.181" (4.60mm) |
|
|
744071022FIXED IND 2.2UH 5.4A 13 MOHM SMD Würth Elektronik |
746 |
|
Datasheet |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 5.4 A | 6.3A | Shielded | 13mOhm Max | - | 62MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.181" (4.60mm) |
|
|
7447773062FIXED IND 6.2UH 3.2A 30 MOHM SMD Würth Elektronik |
693 |
|
Datasheet |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.2 µH | ±20% | 3.2 A | 4.8A | Shielded | 30mOhm Max | - | 31MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 7345 | 0.291" L x 0.287" W (7.40mm x 7.30mm) | 0.177" (4.50mm) |
