Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Number of Positions | Index Stops | Number of Poles per Deck | Circuit per Deck | Contact Timing | Termination Style | Current Rating (Amps) | Voltage Rating - AC | Number of Decks | Voltage Rating - DC | Actuator Type | Mounting Style | Actuator Length | Features | Contact Finish | Angle of Throw | Contact Material | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
57M22-06-4-03NSWITCH ROTARY 3POS 250MA 115V |
2,015 |
|
Datasheet |
57 | Bulk | Active | 3 | Fixed | 4 | 4P3T | Non-Shorting (BBM) | Solder Lug | 250mA (AC/DC) | 115 V | 6 | 30 V | Flatted (6.35mm Dia) | Panel Mount | 11.10mm | - | Gold | 22.5° | Silver Alloy | 71.91mm |
|
|
44D30-12-1-AJSSWITCH ROTARY 2-12POS 1A 115V |
2,385 |
|
Datasheet |
44 | Bulk | Active | 2 ~ 12 | Adjustable | 1 | SP12T | Shorting (MBB) | Solder Lug | 1A (AC/DC) | 115 V | 12 | 28 V | Flatted (6.35mm Dia) | Panel Mount | 11.10mm | - | - | 30° | Silver Alloy | 129.06mm |
|
|
212-6T2ESWITCH ROTARY 6POS 20A 150V |
3,880 |
|
Datasheet |
212 | Bulk | Active | 6 | Fixed | 1 | SP6T | Non-Shorting (BBM) | Solder Lug | 20A (AC/DC) | 150 V | 2 | 20 V | Flatted (6.35mm Dia) | Panel Mount | 12.70mm | - | - | 30° | Silver Alloy | 106.40mm |
|
|
24004-10NSWITCH ROTARY 10POS 1A 115V |
1 |
|
Datasheet |
24 | Bulk | Discontinued at Digi-Key | 10 | Continuous | 1 | SP10T | Non-Shorting (BBM) | Solder Lug | 1A (AC/DC) | 115 V | 4 | 28 V | Flatted (6.35mm Dia) | Panel Mount | 7.92mm | - | Silver | 36° | Phosphor Bronze | - |
|
|
59HS18-05-1-19NSWITCH ROTARY 19POS 250MA 115V |
4,244 |
|
Datasheet |
59 | Bulk | Active | 19 | Fixed | 1 | SP19T | Non-Shorting (BBM) | Solder Lug | 250mA (AC/DC) | 115 V | 5 | 30 V | Flatted (6.35mm Dia) | Panel Mount | 11.10mm | Shaft and Panel Sealed | Gold | 18° | Silver Alloy | 57.10mm |
|
|
42M36-12-1-10NSWITCH ROTARY 10POS 1A 115V |
4,581 |
|
- |
42 | Bulk | Active | 10 | Continuous | 1 | SP10T | Non-Shorting (BBM) | Solder Lug | 1A (AC/DC) | 115 V | 12 | 28 V | Flatted (6.35mm Dia) | Panel Mount | 11.10mm | - | - | 36° | Silver Alloy | 129.06mm |
|
|
59M18-04B20NSWITCH ROTARY 20POS 250MA 115V |
2,169 |
|
Datasheet |
59 | Bulk | Active | 20 | Fixed | 1 | SP20T | Non-Shorting (BBM) | Solder Lug | 250mA (AC/DC) | 115 V | 4 | 30 V | Flatted (6.35mm Dia) | Panel Mount | 11.10mm | - | Gold | 18° | Silver Alloy | 48.64mm |
|
|
05004-02NSWITCH ROTARY 2POS 1A 115V |
4,105 |
|
Datasheet |
5000 | Bulk | Active | 2 | Fixed | 1 | SPDT | Non-Shorting (BBM) | Solder Lug | 1A (AC/DC) | 115 V | 4 | 28 V | Flatted (6.35mm Dia) | Panel Mount | 7.92mm | - | Silver | 36° | Phosphor Bronze | - |
|
|
447615-1SWITCH ROTARY 20/36POS |
3,018 |
|
Datasheet |
3510 | Bulk | Discontinued at Digi-Key | 20, 36 | Fixed | - | - | Not Specified | PC Pin | - | - | 6 | - | Concentric (3.17mm Dia, 6.35mm Dia) | Panel Mount, Through Hole | 84.10mm | - | - | 18° | - | - |
|
H20407RR05QSWITCH ROTARY 4POS 12A 125V |
46 |
|
Datasheet |
H | Bulk | Active | 4 | Fixed | 2 | DP4T | Not Specified | Quick Connect - 0.110" (2.8mm) | 12A (AC), 1A (DC) | 125 V | 1 | 125 V | Flatted (6.35mm Dia) | Panel Mount | 7.29mm | - | Silver | 45° | Copper | 15.25mm |
|
A10703RNMCQSWITCH ROTARY 7POS 2.5A 125V |
62 |
|
Datasheet |
A | Bulk | Active | 7 | Fixed | 1 | SP7T | Non-Shorting (BBM) | PC Pin | 2.5A (AC), 350mA (DC) | 125 V | 1 | 125 V | Flatted (6.35mm Dia) | Panel Mount, Through Hole | 9.53mm | Modular Base | Silver | 30° | Silver (Ag) | 14.48mm |
|
|
A12503RNMCQSWITCH ROTARY 8POS 2.5A 125V |
30 |
|
Datasheet |
A | Bulk | Active | 8 | Fixed | 1 | SP8T | Non-Shorting (BBM) | PC Pin | 2.5A (AC), 350mA (DC) | 125 V | 1 | 125 V | Flatted (6.35mm Dia) | Panel Mount, Through Hole | 9.53mm | Modular Base | Silver | 45° | Silver (Ag) | 14.48mm |
|
MC00L1NZQDROTARY |
19 |
|
Datasheet |
M | Bulk | Active | 12 | Continuous | 1 | SP12T | Non-Shorting (BBM) | Solder Lug | 250mA (AC/DC) | 125 V | 1 | 28 V | Flatted (3.17mm Dia) | Panel Mount | 10.16mm | - | Silver | 30° | Copper Alloy | 14.86mm |
|

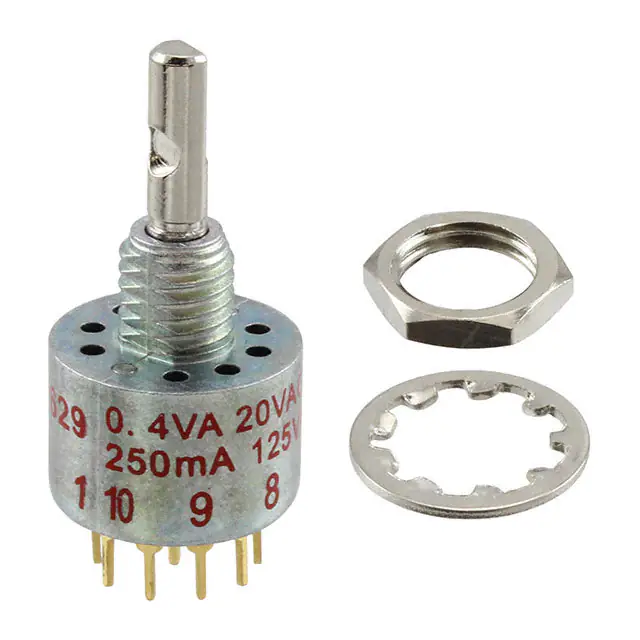

MA05L1NCGDROTARY |
10 |
|
Datasheet |
M | Bulk | Active | 5 | Fixed | 1 | SP5T | Non-Shorting (BBM) | PC Pin | 250mA (AC/DC) | 125 V | 1 | 28 V | Flatted (3.17mm Dia) | Panel Mount, Through Hole | 10.16mm | - | Gold | 36° | Copper Alloy | 10.42mm |
|
|
A10503RNZGESWITCH ROTARY 5POS 2.5A 125V |
62 |
|
Datasheet |
A | Bulk | Active | 5 | Fixed | 1 | SP5T | Non-Shorting (BBM) | Solder Lug | 2.5A (AC), 350mA (DC) | 125 V | 1 | 125 V | Flatted (6.35mm Dia) | Panel Mount | 9.53mm | Epoxy Sealed Terminals | Gold | 30° | Silver (Ag) | 20.83mm |
|
M10H Z A3+003+G2SWITCH ROTARY 2POS 20A |
6 |
|
Datasheet |
M10H | Retail Package | Active | 2 | - | - | - | - | Screw Terminal | 20A | - | - | - | - | Panel Mount | - | - | - | - | - | - |
|
|
N20 PF WU3+G2ENCLOSED REVERSING SWITCH 3P 25A |
2 |
|
Datasheet |
- | Retail Package | Active | 3 | Fixed | 3 | 3P3T | Not Specified | Screw Terminal | 35A (AC) | 600 V | 1 | - | Knob | Panel Mount | - | - | - | 60° | - | - |
|
N33F E WU3+G2SWITCH ROTARY 3POS 40A |
3 |
|
Datasheet |
N33F | Retail Package | Active | 3 | - | - | - | - | Screw Terminal | 40A | - | - | - | - | Panel Mount | - | - | - | - | - | - |
|
KC26A30.001NPSSWITCH ROTARY 6POS 350MA 125V |
3,776 |
|
Datasheet |
KC | Bulk | Active | 6 | Fixed | 2 | DP6T | Non-Shorting (BBM) | PC Pin | 350mA (AC) | 125 V | 1 | - | Flatted (6.35mm Dia) | Panel Mount, Through Hole | 30.00mm | - | Silver | 30° | Copper Alloy | 14.20mm |
|

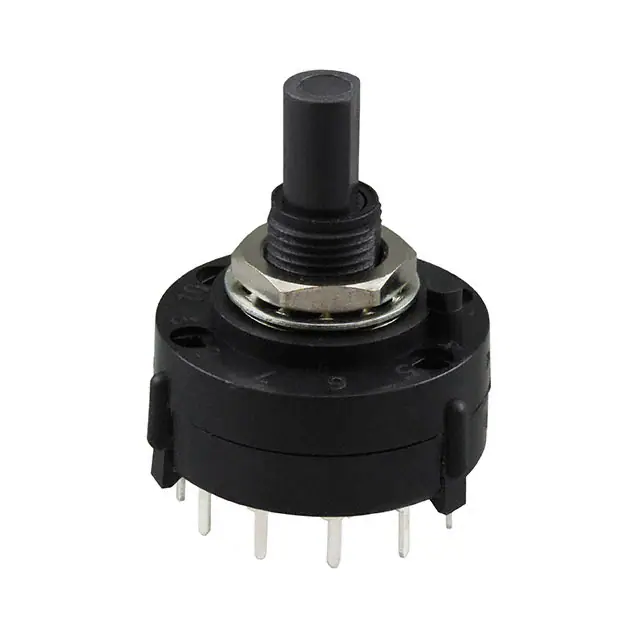

A10603RNCQSWITCH ROTARY 6POS 2.5A 125V |
22 |
|
Datasheet |
A | Tray | Active | 6 | Fixed | 1 | SP6T | Non-Shorting (BBM) | PC Pin | 2.5A (AC), 350mA (DC) | 125 V | 1 | 125 V | Flatted (6.35mm Dia) | Panel Mount, Through Hole | 9.53mm | - | Silver | 30° | Silver (Ag) | 14.48mm |
