Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Number of Positions | Index Stops | Number of Poles per Deck | Circuit per Deck | Contact Timing | Termination Style | Current Rating (Amps) | Voltage Rating - AC | Number of Decks | Voltage Rating - DC | Actuator Type | Mounting Style | Actuator Length | Features | Contact Finish | Angle of Throw | Contact Material | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D2D0606NSWITCH ROTARY 2-6POS 250MA 115V |
2,602 |
|
Datasheet |
D2 | Bulk | Active | 2 ~ 6 | Adjustable | 2 | DP6T | Non-Shorting (BBM) | Solder Lug | 250mA (AC), 550mA (DC) | 115 V | 3 | 28 V | Round (6.35mm Dia) | Panel Mount | 25.40mm | - | Silver | 30° | Brass | 24.69mm |
|
A10315RSZQSWITCH ROTARY 3POS 2.5A 125V |
3,445 |
|
Datasheet |
A | Bulk | Active | 3 | Fixed | 1 | SP3T | Shorting (MBB) | Solder Lug | 2.5A (AC), 350mA (DC) | 125 V | 1 | 125 V | Flatted (6.35mm Dia) | Panel Mount | 38.10mm | - | Silver | 30° | Silver (Ag) | 20.83mm |
|
|
A106S1MNCQSWITCH ROTARY 6POS 2.5A 125V |
4,417 |
|
Datasheet |
A | Bulk | Active | 6 | Fixed | 1 | SP6T | Non-Shorting (BBM) | PC Pin | 2.5A (AC), 350mA (DC) | 125 V | 1 | 125 V | Screwdriver Slot | Panel Mount, Through Hole | Flush | - | Silver | 30° | Silver (Ag) | 14.48mm |
|
|
A10003RNCQSWITCH ROTARY 12POS 2.5A 125V |
3,747 |
|
Datasheet |
A | Bulk | Active | 12 | Continuous | 1 | SP12T | Non-Shorting (BBM) | PC Pin | 2.5A (AC), 350mA (DC) | 125 V | 1 | 125 V | Flatted (9.53mm Dia) | Through Hole | 38.10mm | - | Silver | 30° | Silver (Ag) | 14.48mm |
|
|
A10505MNCQESWITCH ROTARY 5POS 2.5A 125V |
3,484 |
|
Datasheet |
A | Bulk | Active | 5 | Fixed | 1 | SP5T | Non-Shorting (BBM) | PC Pin | 2.5A (AC), 350mA (DC) | 125 V | 1 | 125 V | Flatted (6.35mm Dia) | Panel Mount, Through Hole | 12.70mm | Epoxy Sealed Terminals | Silver | 30° | Silver (Ag) | 14.48mm |
|
|
A104S1RNZQSWITCH ROTARY 1-4POLE |
4,182 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
A10442MNCQSWITCH ROTARY 4POS 2.5A 125V |
2,453 |
|
Datasheet |
A | Bulk | Active | 4 | - | 1 | SP4T | Non-Shorting (BBM) | PC Pin | 2.5A (AC), 350mA (DC) | 125 V | 1 | - | Flatted (6.35mm Dia) | Through Hole | 42.00mm | - | - | 30° | Silver (Ag) | - |
|

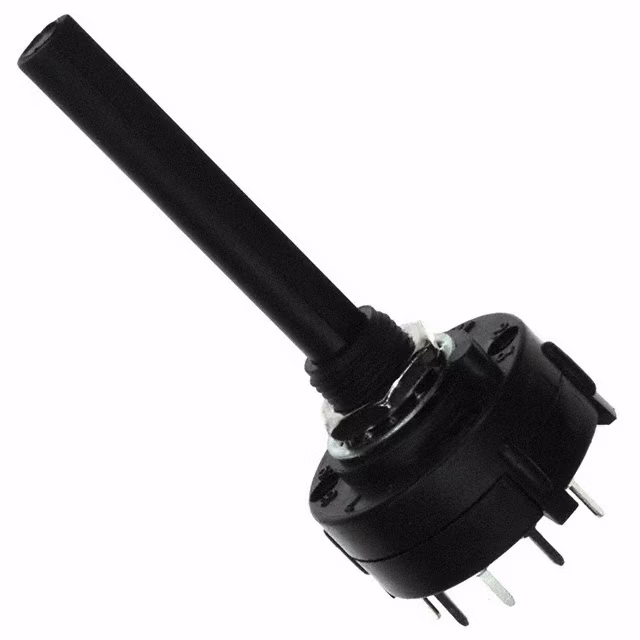

A10815RNCQSWITCH ROTARY 8POS 2.5A 125V |
3,725 |
|
Datasheet |
A | Bulk | Active | 8 | Fixed | 1 | SP8T | Non-Shorting (BBM) | PC Pin | 2.5A (AC), 350mA (DC) | 125 V | 1 | 125 V | Flatted (6.35mm Dia) | Panel Mount, Through Hole | 38.10mm | - | Silver | 30° | Silver (Ag) | 14.48mm |
|
|
A30315RNZQSWITCH ROTARY 3POS 2.5A 125V |
3,265 |
|
Datasheet |
A | Bulk | Active | 3 | - | 3 | 3P3T | Non-Shorting (BBM) | Solder Lug | 2.5A (AC), 350mA (DC) | 125 A | 1 | - | Flatted (6.35mm Dia) | Panel Mount | 38.10mm | - | - | 30° | Silver (Ag) | - |
|
|
A20405RNZQSWITCH ROTARY 4POS 2.5A 125V |
3,149 |
|
Datasheet |
A | Bulk | Active | 4 | - | 2 | DP4T | Non-Shorting (BBM) | Solder Lug | 2.5A (AC), 350mA (DC) | 125 V | 1 | - | Flatted (6.35mm Dia) | Panel Mount | 12.70mm | - | - | 30° | Silver (Ag) | - |
|
|
A10405RNCQKSWITCH ROTARY 1-4POLE |
3,949 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

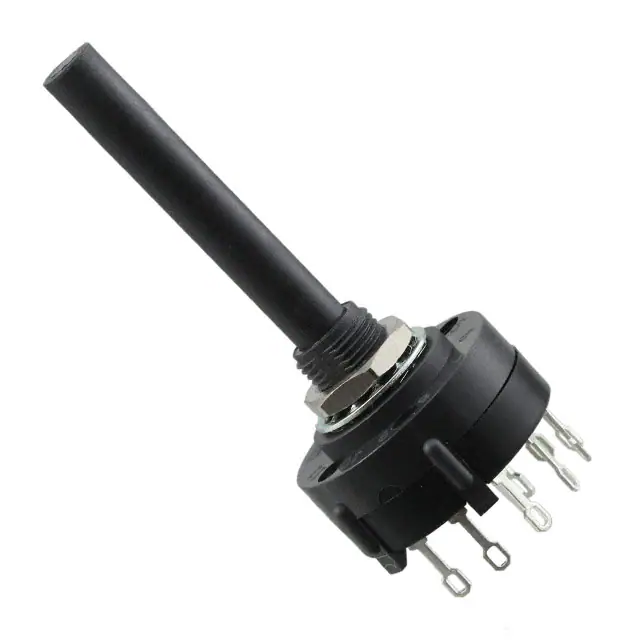

A10715RNZQSWITCH ROTARY 7POS 2.5A 125V |
2,297 |
|
Datasheet |
A | Tray | Active | 7 | Fixed | 1 | SP7T | Non-Shorting (BBM) | Solder Lug | 2.5A (AC), 350mA (DC) | 125 V | 1 | 125 V | Flatted (6.35mm Dia) | Panel Mount | 38.10mm | - | Silver | 30° | Silver (Ag) | 20.83mm |
|
|
A30403RNCQSWITCH ROTARY 4POS 2.5A 125V |
3,640 |
|
Datasheet |
A | Bulk | Active | 4 | Fixed | 3 | 3P4T | Non-Shorting (BBM) | PC Pin | 2.5A (AC), 350mA (DC) | 125 V | 1 | 125 V | Flatted (6.35mm Dia) | Panel Mount, Through Hole | 9.53mm | - | Silver | 30° | Silver (Ag) | 14.48mm |
|

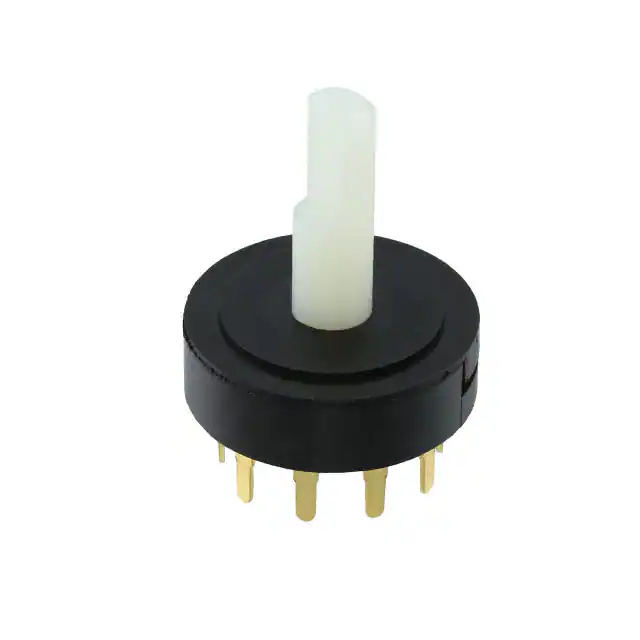

R10007RN02BSWITCH ROTARY 10POS 0.4VA 20V |
3,309 |
|
Datasheet |
R | Bag | Active | 10 | Continuous | 1 | SP10T, Adjacent Contact | Non-Shorting (BBM) | PC Pin | 0.4VA (AC/DC) | 20 V | 1 | 20 V | Flatted (6.35mm Dia) | Through Hole | 12.70mm | - | Gold | 36° | Copper | 10.29mm |
|

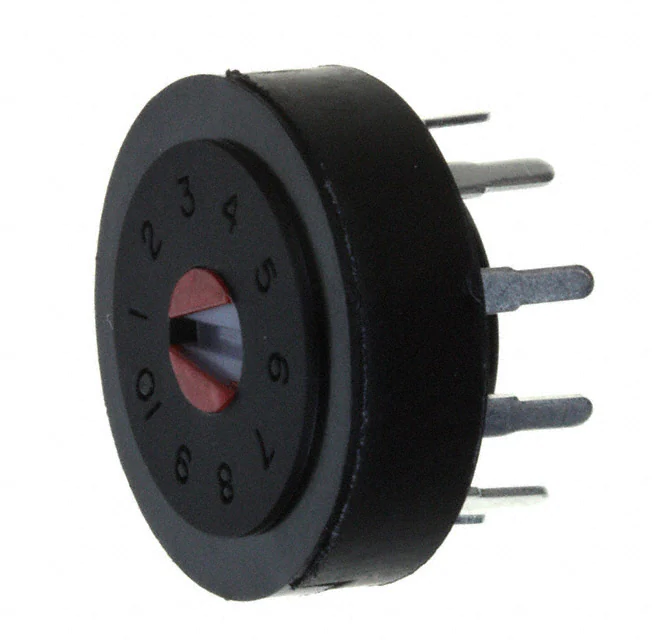

R10015RS02QSWITCH ROTARY 10POS 5A 125V |
3,627 |
|
Datasheet |
R | Tray | Active | 10 | Continuous | 1 | SP10T, Adjacent Contact | Non-Shorting (BBM) | PC Pin | 5A (AC), 500mA (DC) | 125 V | 1 | 125 V | Screwdriver Slot | Through Hole | Flush | - | Silver | 36° | Copper | 10.29mm |
|

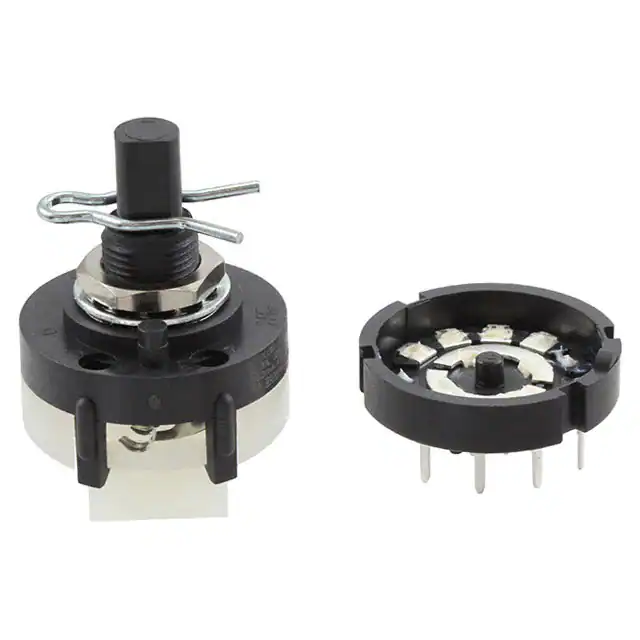

A20403RNMCQSWITCH ROTARY 4POS 2.5A 125V |
4 |
|
Datasheet |
A | Tray | Active | 4 | Fixed | 2 | DP4T | Non-Shorting (BBM) | PC Pin | 2.5A (AC), 350mA (DC) | 125 V | 1 | 125 V | Flatted (6.35mm Dia) | Panel Mount, Through Hole | 9.53mm | Modular Base | Silver | 30° | Silver (Ag) | 14.48mm |
|
|
A10303RSZQSWITCH ROTARY 3POS 2.5A 125V |
15 |
|
Datasheet |
A | Tray | Active | 3 | Fixed | 1 | SP3T | Shorting (MBB) | Solder Lug | 2.5A (AC), 350mA (DC) | 125 V | 1 | 125 V | Flatted (6.35mm Dia) | Panel Mount | 9.53mm | - | Silver | 30° | Silver (Ag) | 20.83mm |
|
|
A40303MNZQSWITCH ROTARY 3POS 2.5A 125V |
3,205 |
|
Datasheet |
A | Bulk | Active | 3 | Fixed | 4 | 4P3T | Non-Shorting (BBM) | Solder Lug | 2.5A (AC), 350mA (DC) | 125 V | 1 | 125 V | Flatted (6.35mm Dia) | Panel Mount | 9.53mm | - | Silver | 30° | Silver (Ag) | 20.83mm |
|
|
A20642RNCQSWITCH ROTARY 6POS 2.5A 125V |
3,144 |
|
Datasheet |
A | Bulk | Active | 6 | Fixed | 2 | DP6T | Non-Shorting (BBM) | PC Pin | 2.5A (AC), 350mA (DC) | 125 V | 1 | 125 V | Round (6mm Dia) | Panel Mount, Through Hole | 42.00mm | - | Silver | 30° | Silver (Ag) | 14.48mm |
|
|
A10603RNZQSWITCH ROTARY 6POS 2.5A 125V |
4,105 |
|
Datasheet |
A | Tray | Active | 6 | Fixed | 1 | SP6T | Non-Shorting (BBM) | Solder Lug | 2.5A (AC), 350mA (DC) | 125 V | 1 | 125 V | Flatted (6.35mm Dia) | Panel Mount | 9.53mm | - | Silver | 30° | Silver (Ag) | 20.83mm |
