Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Number of Positions | Index Stops | Number of Poles per Deck | Circuit per Deck | Contact Timing | Termination Style | Current Rating (Amps) | Voltage Rating - AC | Number of Decks | Voltage Rating - DC | Actuator Type | Mounting Style | Actuator Length | Features | Contact Finish | Angle of Throw | Contact Material | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
56DP30-01-1-AJNSWITCH ROTARY 2-12POS 200MA 115V |
4,825 |
|
Datasheet |
56 | Bulk | Active | 2 ~ 12 | Adjustable | 1 | SP12T | Non-Shorting (BBM) | PC Pin | 200mA (AC/DC) | 115 V | 1 | 30 V | Flatted (3.17mm Dia) | Panel Mount, Through Hole | 9.53mm | - | Silver | 30° | Brass | 9.58mm |
|
56DP36-01-2-AJNSWITCH ROTARY 2-5POS 200MA 115V |
4,796 |
|
Datasheet |
56 | Bulk | Active | 2 ~ 5 | Adjustable | 2 | DP5T | Non-Shorting (BBM) | PC Pin | 200mA (AC/DC) | 115 V | 1 | 30 V | Flatted (3.17mm Dia) | Panel Mount, Through Hole | 9.53mm | - | Silver | 36° | Brass | 9.58mm |
|
77SPT36-01-1-02NSWITCH ROTARY 2POS 50MA 115V |
4,505 |
|
Datasheet |
77 | Bulk | Active | 2 | Fixed | 1 | SPDT | Non-Shorting (BBM) | PC Pin | 50mA (AC), 200mA (DC) | 115 V | 1 | 28 V | Flatted (3.17mm Dia) | Panel Mount, Through Hole | 7.98mm | Shaft and Panel Sealed | Gold | 36° | Silver Tin Oxide (AgSnO) | 4.57mm |
|
|
77SPT36-01-1-10N-FSWITCH ROTARY 10POS 50MA 115V |
3,134 |
|
Datasheet |
77 | Bulk | Active | 10 | Fixed | 1 | SP10T | Non-Shorting (BBM) | PC Pin | 50mA (AC), 200mA (DC) | 115 V | 1 | 28 V | Flatted (3.17mm Dia) | Panel Mount, Through Hole | 7.98mm | Shaft and Panel Sealed | Gold | 36° | Silver Tin Oxide (AgSnO) | 4.57mm |
|
|
77SPT36-01-1-10NSWITCH ROTARY 10POS 50MA 115V |
3,159 |
|
Datasheet |
77 | Bulk | Active | 10 | Continuous | 1 | SP10T | Non-Shorting (BBM) | PC Pin | 50mA (AC), 200mA (DC) | 115 V | 1 | 28 V | Flatted (3.17mm Dia) | Panel Mount, Through Hole | 7.98mm | Shaft and Panel Sealed | Gold | 36° | Silver Tin Oxide (AgSnO) | 4.57mm |
|
24001-03NSWITCH ROTARY 3POS 1A 115V |
4,391 |
|
Datasheet |
24 | Bulk | Active | 3 | Fixed | 1 | SP3T | Non-Shorting (BBM) | Solder Lug | 1A (AC/DC) | 115 V | 1 | 28 V | Flatted (6.35mm Dia) | Panel Mount | 7.92mm | - | Silver | 36° | Phosphor Bronze | 14.68mm |
|
SRBV141201SWITCH ROTARY 4POS 300MA 16V |
22 |
|
Datasheet |
SRBV | Tray | Active | 4 | Fixed | 1 | SP4T | Non-Shorting (BBM) | PC Pin | 300mA (DC) | - | 1 | 16 V | Flatted | Through Hole | 20.00mm | - | - | 30° | - | 14.50mm |
|

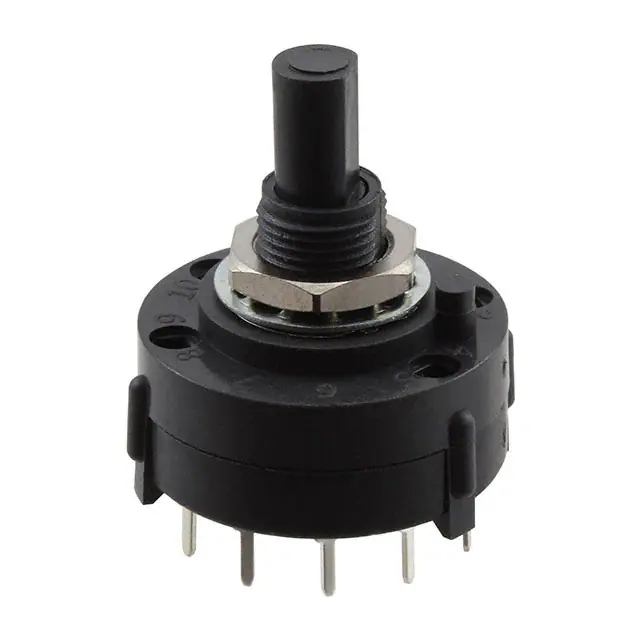

A10503RNCQSWITCH ROTARY 5POS 2.5A 125V |
4,479 |
|
Datasheet |
A | Tray | Active | 5 | Fixed | 1 | SP5T | Non-Shorting (BBM) | PC Pin | 2.5A (AC), 350mA (DC) | 125 V | 1 | 125 V | Flatted (6.35mm Dia) | Panel Mount, Through Hole | 9.53mm | - | Silver | 30° | Silver (Ag) | 14.48mm |
|

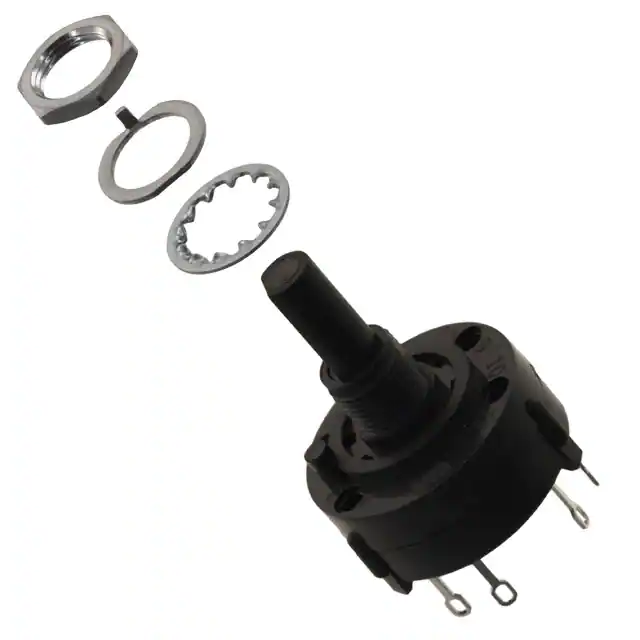

A12505RNZQSWITCH ROTARY 8POS 2.5A 125V |
4,222 |
|
Datasheet |
A | Tray | Active | 8 | Fixed | 1 | SP8T | Non-Shorting (BBM) | Solder Lug | 2.5A (AC), 350mA (DC) | 125 V | 1 | 125 V | Flatted (6.35mm Dia) | Panel Mount | 12.70mm | - | Silver | 45° | Silver (Ag) | 20.83mm |
|

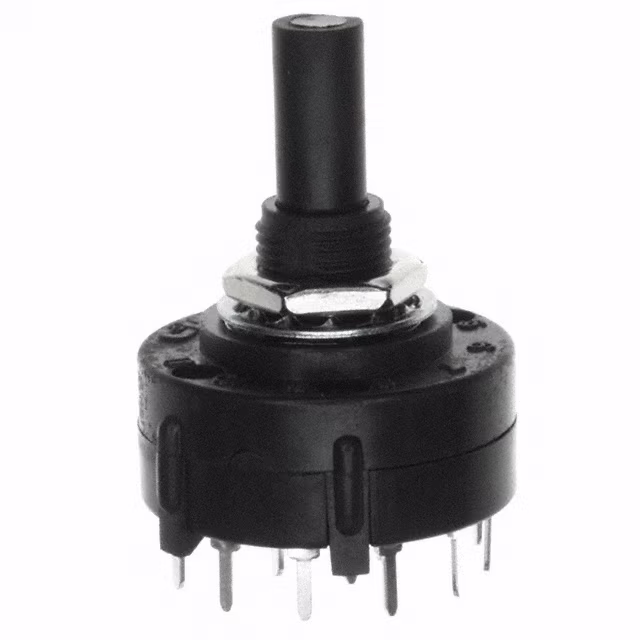

A40305RNCQSWITCH ROTARY 3POS 2.5A 125V |
4 |
|
Datasheet |
A | Bulk | Active | 3 | Fixed | 4 | 4P3T | Non-Shorting (BBM) | PC Pin | 2.5A (AC), 350mA (DC) | 125 V | 1 | 125 V | Flatted (6.35mm Dia) | Panel Mount, Through Hole | 12.70mm | - | Silver | 30° | Silver (Ag) | 14.48mm |
|
50DP45-01-2-AJNSWITCH ROTARY 2-4POS 150MA 115V |
2,670 |
|
Datasheet |
50 | Bulk | Active | 2 ~ 4 | Adjustable | 2 | DP4T | Non-Shorting (BBM) | PC Pin | 150mA (AC), 200mA (DC) | 115 V | 1 | 28 V | Flatted (3.17mm Dia) | Panel Mount, Through Hole | 9.53mm | - | Gold | 45° | - | 13.64mm |
|
C4D0606N-ASWITCH ROTARY 2-6POS 300MA 125V |
4 |
|
Datasheet |
C4 | Bulk | Active | 2 ~ 6 | Adjustable | 2 | DP6T | Non-Shorting (BBM) | Solder Lug | 300mA (AC), 500mA (DC) | 125 V | 3 | 28 V | Flatted (6.35mm Dia) | Panel Mount | 12.70mm | - | Silver | 30° | Brass | 34.54mm |
|
C4D0604N-ASWITCH ROTARY 2-4POS 300MA 125V |
1 |
|
Datasheet |
C4 | Bulk | Active | 2 ~ 4 | Adjustable | 3 | 3P4T | Non-Shorting (BBM) | Solder Lug | 300mA (AC), 500mA (DC) | 125 V | 2 | 28 V | Flatted (6.35mm Dia) | Panel Mount | 12.70mm | - | Silver | 30° | Brass | 27.33mm |
|
|
212-12ESWITCH ROTARY 12POS 20A 150V |
4,688 |
|
Datasheet |
212 | Bulk | Active | 12 | Fixed | 1 | SP12T | Non-Shorting (BBM) | Solder Lug | 20A (AC/DC) | 150 V | 1 | 20 V | Flatted (6.35mm Dia) | Panel Mount | 12.70mm | - | - | 30° | Silver Alloy | 44.50mm |
|

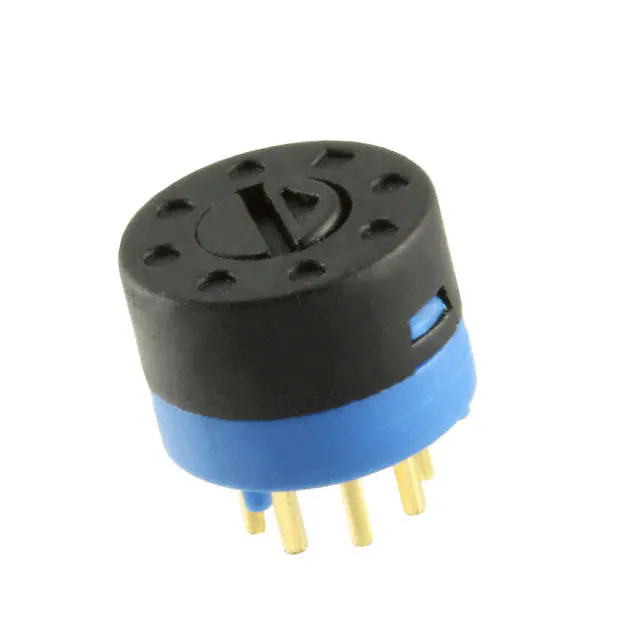

RM103002BCBSWITCH ROTARY 3POS 500MA 24V |
4,429 |
|
Datasheet |
RM | Tray | Active | 3 | Fixed | 1 | SP3T | Non-Shorting (BBM) | PC Pin | 500mA (DC) | - | 1 | 24 V | Screwdriver Slot | Through Hole | Flush | - | Gold | 45° | Brass | 7.37mm |
|
H20207RR01QSWITCH ROTARY 2POS 12A 125V |
3,079 |
|
Datasheet |
H | Bulk | Active | 2 | Fixed | 2 | DPDT | Non-Shorting (BBM) | Solder Lug | 12A (AC), 1A (DC) | 125 V | 1 | 125 V | Flatted (6.35mm Dia) | Panel Mount | 7.29mm | - | Silver | 45° | Copper | 14.61mm |
|
|
H20207RR05QSWITCH ROTARY 2POS 12A 125V |
3,109 |
|
Datasheet |
H | Bulk | Active | 2 | Fixed | 2 | DPDT | Non-Shorting (BBM) | Quick Connect - 0.110" (2.8mm) | 12A (AC), 1A (DC) | 125 V | 1 | 125 V | Flatted (6.35mm Dia) | Panel Mount | 7.29mm | - | Silver | 45° | Copper | 15.25mm |
|
A10405RNCQESWITCH ROTARY 4POS 2.5A 125V |
19 |
|
Datasheet |
A | Tray | Active | 4 | Fixed | 1 | SP4T | Non-Shorting (BBM) | PC Pin | 2.5A (AC), 350mA (DC) | 125 V | 1 | 125 V | Flatted (6.35mm Dia) | Panel Mount, Through Hole | 12.70mm | Epoxy Sealed Terminals | Silver | 30° | Silver (Ag) | 14.48mm |
|

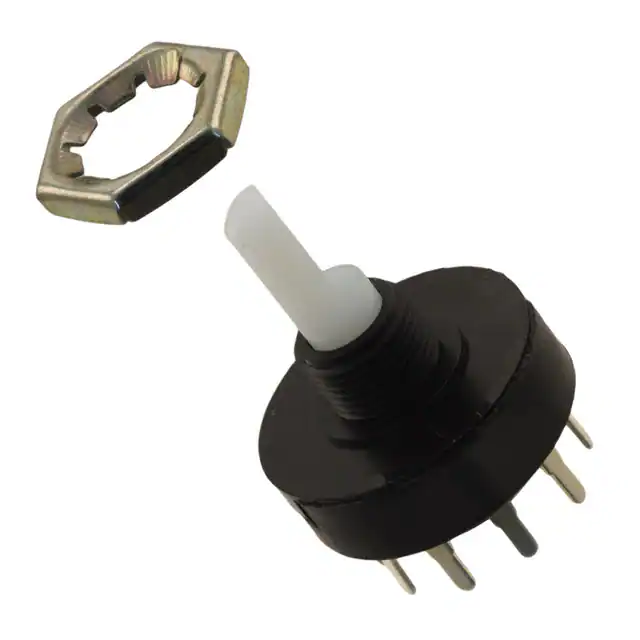

R20407RR02QSWITCH ROTARY 4POS 5A 125V |
18 |
|
Datasheet |
R | Tube | Active | 4 | Fixed | 2 | DP4T, Adjacent Contact | Non-Shorting (BBM) | PC Pin | 5A (AC), 500mA (DC) | 125 V | 1 | 125 V | Flatted (6.35mm Dia) | Panel Mount, Through Hole | 12.70mm | - | Silver | 36° | Copper | 10.29mm |
|
A10215RNZQSWITCH ROTARY 2POS 2.5A 125V |
23 |
|
Datasheet |
A | Tray | Active | 2 | Fixed | 1 | SPDT | Non-Shorting (BBM) | Solder Lug | 2.5A (AC), 350mA (DC) | 125 V | 1 | 125 V | Flatted (6.35mm Dia) | Panel Mount | 38.10mm | - | Silver | 30° | Silver (Ag) | 20.83mm |
