Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Number of Positions | Index Stops | Number of Poles per Deck | Circuit per Deck | Contact Timing | Termination Style | Current Rating (Amps) | Voltage Rating - AC | Number of Decks | Voltage Rating - DC | Actuator Type | Mounting Style | Actuator Length | Features | Contact Finish | Angle of Throw | Contact Material | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

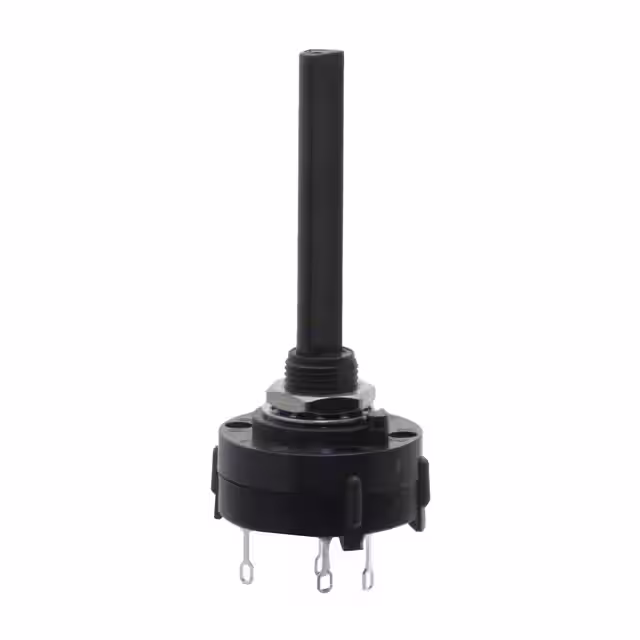

A11514RNZQSWITCH ROTARY 3POS 2.5A 125V |
24 |
|
Datasheet |
A | Tray | Active | 3 | Fixed | 1 | SP3T | Non-Shorting (BBM) | Solder Lug | 2.5A (AC), 350mA (DC) | 125 V | 1 | 125 V | Flatted (6.35mm Dia) | Panel Mount | 38.10mm | - | Silver | 45° | Silver (Ag) | 20.83mm |
|

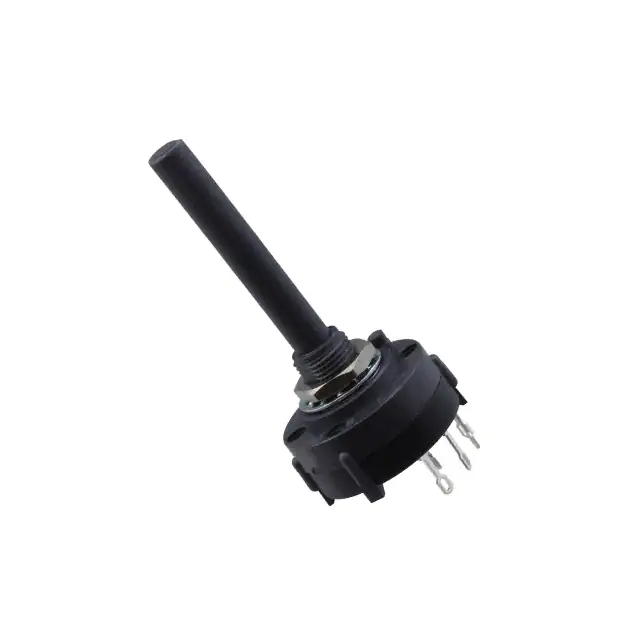

A10415RNZQSWITCH ROTARY 4POS 2.5A 125V |
12 |
|
Datasheet |
A | Tray | Active | 4 | Fixed | 1 | SP4T | Non-Shorting (BBM) | Solder Lug | 2.5A (AC), 350mA (DC) | 125 V | 1 | 125 V | Flatted (6.35mm Dia) | Panel Mount | 38.10mm | - | Silver | 30° | Silver (Ag) | 20.83mm |
|
KC52B10.001NPSSWITCH ROTARY 12POS 350MA 125V |
6 |
|
Datasheet |
KC | Bulk | Active | 12 | Fixed | 1 | SP12T | Non-Shorting (BBM) | PC Pin | 350mA (AC) | 125 V | 1 | - | Round (6mm Dia) | Panel Mount, Through Hole | 10.00mm | - | Silver | 30° | Copper Alloy | 14.20mm |
|
MC03L1NCGDSWITCH ROTARY 3POS 250MA 125V |
2 |
|
Datasheet |
M | Tray | Active | 3 | Fixed | 1 | SP3T | Non-Shorting (BBM) | PC Pin | 250mA (AC/DC) | 125 V | 1 | 28 V | Flatted (3.17mm Dia) | Panel Mount, Through Hole | 10.16mm | - | Gold | 30° | Copper Alloy | 10.42mm |
|

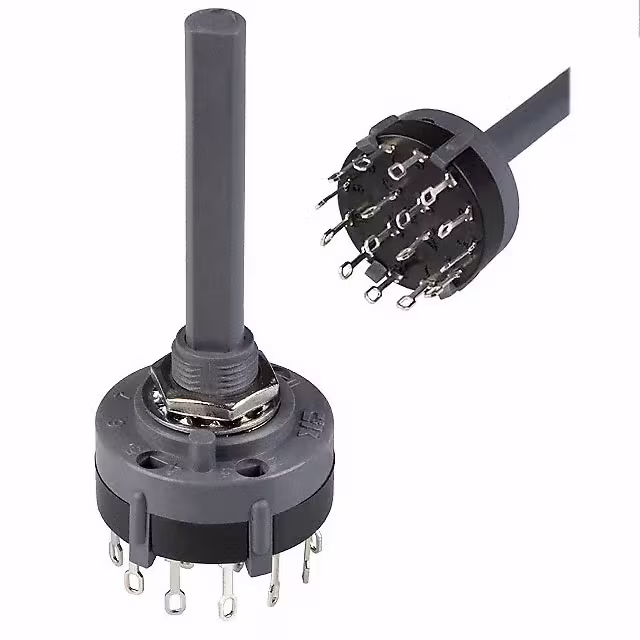

A40315RNZQSWITCH ROTARY 3POS 2.5A 125V |
5 |
|
Datasheet |
A | Tray | Active | 3 | Fixed | 4 | 4P3T | Non-Shorting (BBM) | Solder Lug | 2.5A (AC), 350mA (DC) | 125 V | 1 | 125 V | Flatted (6.35mm Dia) | Panel Mount | 38.10mm | - | Silver | 30° | Silver (Ag) | 20.83mm |
|
A20605RNCQKSWITCH ROTARY 6POS 2.5A 125V |
4,311 |
|
Datasheet |
A | Tray | Active | 6 | Fixed | 2 | DP6T | Non-Shorting (BBM) | PC Pin | 2.5A (AC), 350mA (DC) | 125 V | 1 | 125 V | Flatted (6.35mm Dia) | Panel Mount, Through Hole | 12.70mm | Epoxy Sealed Terminals, Splashproof Bushing Seal | Silver | 30° | Silver (Ag) | 14.48mm |
|
A20405RNCQKSWITCH ROTARY 4POS 2.5A 125V |
1 |
|
Datasheet |
A | Tray | Active | 4 | Fixed | 2 | DP4T | Non-Shorting (BBM) | PC Pin | 2.5A (AC), 350mA (DC) | 125 V | 1 | 125 V | Flatted (6.35mm Dia) | Panel Mount, Through Hole | 12.70mm | Epoxy Sealed Terminals, Splashproof Bushing Seal | Silver | 30° | Silver (Ag) | 14.48mm |
|

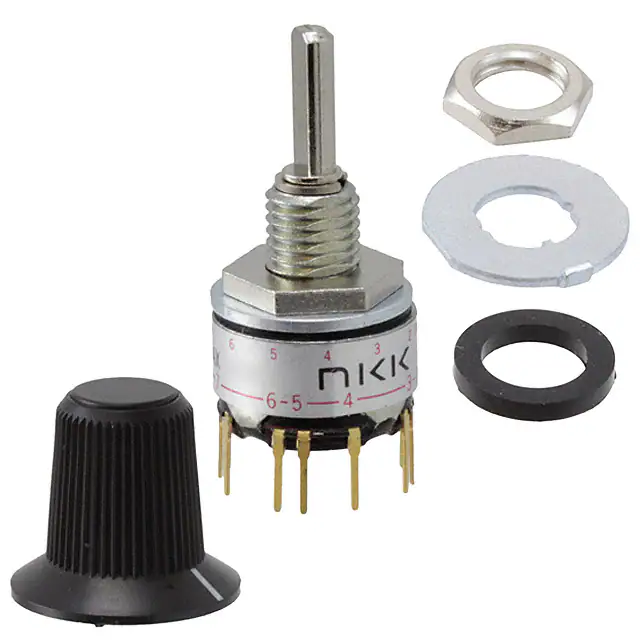

MRK112-BASWITCH ROTARY 2-12POS 0.4VA 28V |
4,223 |
|
Datasheet |
MR | Bulk | Active | 2 ~ 12 | Adjustable | 1 | SP12T | Non-Shorting (BBM) | PC Pin | 0.4VA (AC/DC) | 28 V | 1 | 28 V | Knob | Panel Mount, Through Hole | 14.30mm | Process Sealed | Gold | 30° | Phosphor Bronze | 10.10mm |
|
MRX204-CASWITCH ROTARY 2-4POS 2A 125V |
2 |
|
Datasheet |
MR | Bulk | Active | 2 ~ 4 | Adjustable | 2 | DP4T | Non-Shorting (BBM) | PC Pin | 2A (AC), 1A (DC) | 125 V | 1 | 30 V | Knob | Panel Mount, Through Hole | 15.80mm | Sealed - Flux Protection | - | 45° | Silver Alloy | 27.30mm |
|
71AD36-01-1-AJNSWITCH ROTARY 2-10POS 250MA 115V |
3,185 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 10 | Adjustable | 1 | SP10T | Non-Shorting (BBM) | Solder Lug | 250mA (AC/DC) | 115 V | 1 | 30 V | Flatted (3.17mm Dia) | Panel Mount | 9.53mm | - | - | 36° | Silver Alloy | 19.33mm |
|
71BDF36-01-1-AJNSWITCH ROTARY 2-10POS 250MA 115V |
4,255 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 10 | Adjustable | 1 | SP10T | Non-Shorting (BBM) | PC Pin | 250mA (AC/DC) | 115 V | 1 | 30 V | Flatted (6.35mm Dia) | Panel Mount, Through Hole, Right Angle | 9.53mm | - | - | 36° | Silver Alloy | 19.33mm |
|
51P22-01-2-08NSWITCH ROTARY 8POS 150MA 115V |
2 |
|
Datasheet |
51 | Bulk | Active | 8 | Fixed | 2 | DP8T | Non-Shorting (BBM) | PC Pin | 150mA (AC), 200mA (DC) | 115 V | 1 | 28 V | Flatted (3.17mm Dia) | Panel Mount, Through Hole | 9.53mm | - | Gold | 22.5° | - | 13.64mm |
|
D4G0303NSWITCH ROTARY 2-3POS 500MA 115V |
5 |
|
Datasheet |
D4 | Bulk | Active | 2 ~ 3 | Adjustable | 3 | 3P3T | Non-Shorting (BBM) | Solder Lug | 500mA (AC), 1.5A (DC) | 115 V | 1 | 28 V | Round (6.35mm Dia) | Panel Mount | 47.63mm | - | Silver | 30° | Brass | 14.27mm |
|
C2P0108N-ASWITCH ROTARY 2-8POS 100MA 125V |
3 |
|
Datasheet |
C2 | Bulk | Active | 2 ~ 8 | Adjustable | 1 | SP8T | Non-Shorting (BBM) | PC Pin | 100mA (AC), 250mA (DC) | 125 V | 1 | 28 V | Flatted (3.17mm Dia) | Panel Mount, Through Hole, Right Angle | 9.52mm | - | Silver | 30° | Brass | 22.38mm |
|
C4D0806N-ASWITCH ROTARY 2-6POS 300MA 125V |
3,719 |
|
Datasheet |
C4 | Bulk | Active | 2 ~ 6 | Adjustable | 2 | DP6T | Non-Shorting (BBM) | Solder Lug | 300mA (AC), 500mA (DC) | 125 V | 4 | 28 V | Flatted (6.35mm Dia) | Panel Mount | 12.70mm | - | Silver | 30° | Brass | 41.76mm |
|
D4G0311NSWITCH ROTARY 2-11POS 500MA 115V |
3,833 |
|
Datasheet |
D4 | Bulk | Active | 2 ~ 11 | Adjustable | 1 | SP11T | Non-Shorting (BBM) | Solder Lug | 500mA (AC), 1.5A (DC) | 115 V | 3 | 28 V | Round (6.35mm Dia) | Panel Mount | 47.63mm | - | Silver | 30° | Brass | 42.82mm |
|
C4D1006N-ASWITCH ROTARY 2-6POS 300MA 125V |
3,004 |
|
Datasheet |
C4 | Bulk | Active | 2 ~ 6 | Adjustable | 2 | DP6T | Non-Shorting (BBM) | Solder Lug | 300mA (AC), 500mA (DC) | 125 V | 5 | 28 V | Flatted (6.35mm Dia) | Panel Mount | 12.70mm | - | Silver | 30° | Brass | 48.97mm |
|
C7D0223NSWITCH ROTARY 23POS 500MA 125V |
1 |
|
Datasheet |
C7 | Bulk | Active | 23 | Fixed | 1 | SP23T | Non-Shorting (BBM) | Solder Lug | 500mA (AC), 1A (DC) | 125 V | 2 | 28 V | Flatted (6.35mm Dia) | Panel Mount | 14.29mm | - | Silver | 15° | Brass | 32.49mm |
|
C4D1504N-ASWITCH ROTARY 2-4POS 300MA 125V |
4,523 |
|
Datasheet |
C4 | Bulk | Active | 2 ~ 4 | Adjustable | 3 | 3P4T | Non-Shorting (BBM) | Solder Lug | 300mA (AC), 500mA (DC) | 125 V | 5 | 28 V | Flatted (6.35mm Dia) | Panel Mount | 12.70mm | - | Silver | 30° | Brass | 48.97mm |
|
D2D0312NSWITCH ROTARY 2-12POS 250MA 115V |
1 |
|
Datasheet |
D2 | Bulk | Active | 2 ~ 12 | Adjustable | 1 | SP12T | Non-Shorting (BBM) | Solder Lug | 250mA (AC), 550mA (DC) | 115 V | 3 | 28 V | Round (6.35mm Dia) | Panel Mount | 25.40mm | - | Silver | 30° | Brass | 24.69mm |
